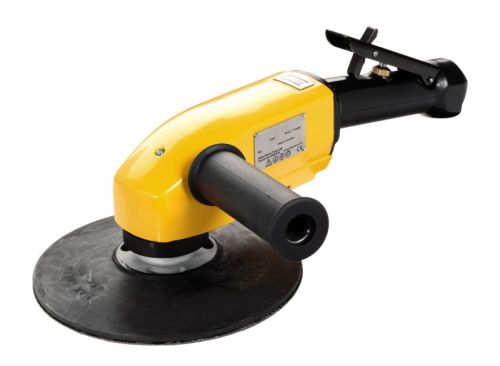

Atlas Copco Tools LSV48 SA085-NPT Pneumatic angle sander 8,500 r/min 1.9 kW Max pad dia 180 mm 7″ Spindle thread : 5/8-11 UNC 8423070751

Atlas Copco Tools LSV48 SA085-NPT Pneumatic angle sander 8,500 r/min 1.9 kW Max pad dia 180 mm 7″ Spindle thread : 5/8-11 UNC 8423070751

Features

• Superior power and low weight
• Integrated Autobalancer
• Integrated Speed governor
• Robust aluminum housing
• Lubrication free air motor
• Integrated Spindle lock
• Dust extraction kit available

Benefits

• High level of operator safety and comfort
• Reduced risk of vibration related injuries
• Optimized process speed and productivity
• Durable and long service intervals
• Reduced workspace contamination

LSV48 SA085-NPT

8423070751

Accessories, Spare Parts, Product Information

• Max free speed : 8,500 r/min
• Max pad dia : 7 inch
• Spindle thread : 5/8-11 UNC
• Air inlet thread NPT : 1/2 inch
• Air consumption at free speed : 36 cfm
• Air consumption at free speed : 17 l/s
• Air consumption at max output : 76 cfm
• Air consumption at max output : 36 l/s
• Auto balancer : Yes
• EAC certified : Yes
• EC standard : ISO11148-8
• Height : 4 inch
• Height : 101 mm
• Height over spindle : 3.4 inch
• Height over spindle : 87 mm
• Lubrication Free : Yes
• Max output : 2.5 HP
• Max output : 1.9 kW
• Max working pressure : 7 bar
• Max working pressure : 100 psig
• Model type : Angle
• Motor type : Vane
• Rec hose size : 5/8 inch
• Rec hose size : 16 mm
• Sound pressure : 89 dB(A)
• Sound standard : ISO15744
• Sound uncertainty : 3 dB(A)
• Spindle length : 0.9 inch
• Spindle length : 24 mm
• Support handle included : Yes
• Vibration standard : ISO28927-3
• Vibration value : <2.5 m=”” s=”” li=””>
• WEEE : 0
• Weight : 2.3 kg
• Weight : 5.1 lb
• EU directives : 2006/42/EC
• Length : 12.4 inch
• Length : 316 mm
• Sound power : 100 dB(A)
