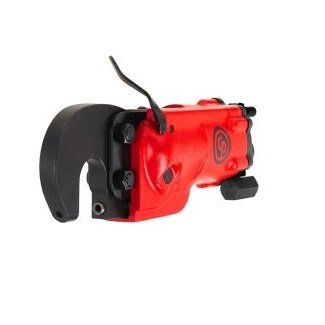

C P CP4210CS Chicago Pneumatic Aerospace Riveters 6151710180 1-1/2″ Reach C Yoke Single Cylinder
- 1/16″ – 3/32″ – 1/8″(Aluminium)
- Simgle cylinder
- C Yoke
- 1-1/2″ Reach
- 3/16″ set holder
| Metric | Imperial |
|---|
| Model | CP4210CS | |
| Part number | 6151710180 | |
| Air inlet thread size | 1/4 “ | |
| Air inlet thread type | NPT | |
| Capacity aluminum | 3.17 mm | 1/8 “ |
| Capacity steel | 2.36 mm | 3/32 “ |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Sound standard | EN ISO 15744 | |
| European Standards | EN ISO 11148-10 : 2011 | |
| Height | 84 mm | 3.3 “ |
| Length | 262 mm | 10.3 “ |
| Max force (90 psi/ 6.2bar) | 13.34 kN | 3000 lb |
| Min. hose size | 9.5 mm | 3/8 “ |
| Moving plunger final part of stroke at max. force | 1.3 mm | 0.05 “ |
| Moving plunger max. travel | 14.27 mm | 0.56 “ |
| Net weight | 2.04 kg | 4.5 lb |
| Sound Power | 87 db(A) | |
| Sound pressure | 76 db(A) | |
| Sound uncertainty | 3 db(A) | |
| Std yoke dimensions closed height | 32 mm | 1 1/4 “ |
| Std yoke dimensions reach | 38.1 mm | 1 1/2 “ |
| Vibration | <2.5 m/s² | |
| Vibration ISO | EN ISO 20643 | |
| Vibration uncertainty (K) | 2.3 m/s² |
| Model | Part No | Rivet size | Jaw Type |
| CP4210CS | 6151710180 | 1/16″ – 3/32″ – 1/8″ | C Short |
| CP4210AS | 6151710200 | 1/16″ – 3/32″ – 1/8″ | Alligator Short |
| CP4210AL | 6151710220 | 1/16″ – 3/32″ | Alligator Long |
| CP4220AL | 6151710230 | 3/32″ – 1/8″ | Alligator Long |
| CP4220AS | 6151710210 | 5/32 ” – 3/16″ | Alligator Short |
| CP4220CS | 6151710190 | 5/32 ” – 3/16″ | C Short |
Benefits
Smooth operation and almost vibrationless
Perfectly adapted for metal structure repair
Powerful and robust
Features
Rivet squeezer with short C Yoke jaw
1,5 inches (38 mm) reach from edge
Swivel inlet for maximum comfort and accessibility
