Cherry Aerospace G29 Hand Rivet Gun – Riveter comes with a 728A9-3 nosepiece to install 3/32″ rivets and a 728A9-104 nosepiece stored in the handle for installing 1/8″rivets.

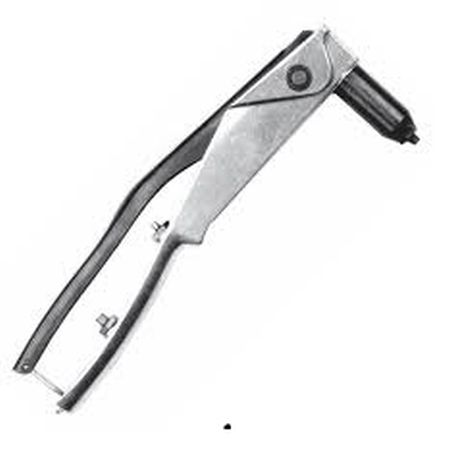

Cherry Aerospace G29 Hand Rivet Gun – Riveter

Description
The Cherry® G-29 Hand Riveter is an efficient, compact,lightweight tool for installing Cherry® nut-plate rivets. It comes equipped with a 728A9-3 nosepiece to install 3/32″ rivets and has a 728A9-104 nosepiece stored in the handle for installing 1/8″rivets.

The G-29 Riveter is 91/4″ long, weighs just 13 ounces and is intended for use where access or power limitations prevent the use of Cherry power tools. To operate, first insert rivet stem into nosepiece. Insert rivet into work with riveter nosepiece held firmly and squarely against the head of the rivet. Maintain a steady pressure against rivet head and
squeeze the handles to install the rivet. An additional stroke may be necessary depending on the rivet length and the thickness of the material being joined.
