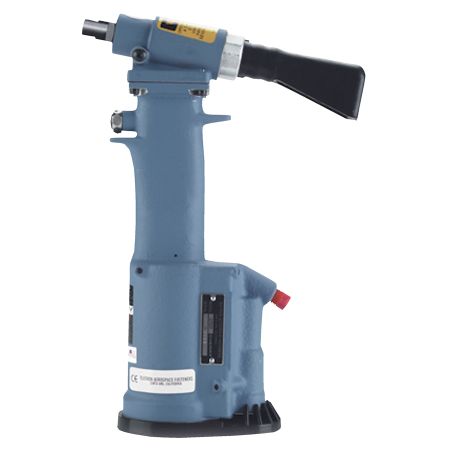

Cherry Aerospace G702A is a pneumatic-hydraulic Rivet Gun -Riveter Used / Second Hand
The Cherry G702A is a pneumatic-hydraulic tool designed specifically for the most efficient installation of Nut-plate rivets. Its durable, all metal housing makes this extremely robust tool ideal for use in rugged shop environments. It has many ergonomic features: very light weight, comfortable fit in the operator’s hand and it can be operated in any position with one hand. The H702-3NPR pulling head fits directly on the G702A tool to install -3, -4, 2.5mm and 3mm Nut-plate rivets. See the section on pulling heads for installation instructions and nosepiece selection. SPECIFICATIONS FOR G702A CHERRY’s policy is one of continuous development. Specifications shown in this document may be subject to change which may be introduced after publication. For the latest information always consult the Cherry Aerospace Website or contact us. AIR PRESSURE 90 to 110 psi (6.2 bar to 7.6 bar) STROKE 0.75 inch (19 mm) PULLING FORCE 1100 Pounds (4.9 kN) @ 90 PSI (6.2 bar) CYCLE TIME Approximately One Second WEIGHT 3.5 Pounds (1.59 kg) NOISE LEVEL 65 dB (A) VIBRATION less than 2.5 m/s2 AIR CONSUMPTION 0.066 SCF/cycle (1.87 L/cycle)
