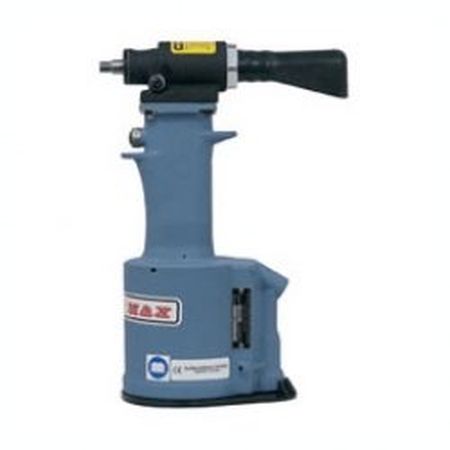

Cherry Aerospace G704B _ Used / Second Hand Pneumatic-Hydraulic Rivet Gun – Riveter
CALL FOR PRICING
| Weight | 2.466 kg |
|---|
Cherry Aerospace G704B _ Used / Second Hand Pneumatic- Hydraulic Rivet Gun – Riveter
Cherry G704B
Rivet Gun is a high speed production riveting tools designed for long life. Cherry pulling heads for rivet guns are not furnished with riveter and must be ordered separately. If you click on links in the rivet gun section, this site will lead you to the pulling head assemblies. If you click on links in the Pulling head assembly section, this site will lead you to the correct Cherry riveting gun. Please call for spare parts. 02380 455443
DESCRIPTION
The Cherry G704B is a pneumatic-hydraulic tool designed specifically for the most efficient installation of CherryMAX® 3/4″ (19.05 mm) rivets. Its durable, all metal housing makes this extremely robust tool ideal for use in rugged shop environments. This tool utilizes straight, offset and right-angle pulling heads, all of which can install -4, -5, and -6 diameter CherryMAX® bulb type rivets in all head styles, materials and grip lengths. Extensions are available for extending the pulling heads to reach limited access areas.
SPECIFICATIONS FOR CHERRY G704B
Cherry Aerospace’ (CHERRY) policy is one of continuous development. Specifications shown in this document may be subject to change which may be introduced after publication. For the latest information always consult CHERRY.
- AIR PRESSURE 90 PSI (6.2 bar) Min./ 110 PSI (7.6 bar) Max.
- STROKE .510 Inch (12.954 mm) PULLING FORCE 3100 Pounds (13.79 kn) @ 90 PSI (6.2 bar)
- CYCLE TIME Approximately One Second
- WEIGHT 4 1/4 Pounds (1.93 kg)
- NOISE LEVEL 71 dB (A)
- VIBRATION 2.5 m/s2
- AIR CONSUMPTION 3.9 CFM (110.5 liters/M) at 20 Cycles per Minute
Cherry pulling Heads are not furnished with riveter and must be ordered separately.
G704B will install Avdel MBC rivets correct head ASSY
- * May be double stroked for longer grips.
- ** Nominal and oversize.
| Pulling Head | Type | Adaptor | Rivet | Rivet Dia | Max Grip |
| H701B-456 | Straight | – | CherryMax CherryMax ‘AB’ MBC L/C SST | 1/8, 5/32, 3/16 (23)** 1/8, 5/32, 3/16 1/8, 5/32, 3/16 1/8, 5/32, 3/16** | ALL -4* -4 * ALL |
| H753A-456 | Right Angle | – | CherryMax CherryMax ‘AB’ SST | 1/8, 5/32, 3/16 (23)** 1/8, 5/32, 3/16 1/8, 5/32, 3/16** | ALL -4 ALL |
| H781-456 | Offset | – | CherryMax CherryMax ‘AB’ SST MS | 1/8, 5/32, 3/16 (23)** 1/8, 5/32, 3/16 1/8, 5/32, 3/16** 3/32, 1/8, 5/32, 3/16 | ALL -4 * ALL -4 * |
| H9015 | Straight | 704A9 | CherryMax CherryMax ‘AB’ SST MS | 1/8, 5/32, 3/16 (23)** 1/8, 5/32, 3/16 1/8, 5/32, 3/16** 3/32, 1/8, 5/32, 3/16 | ALL -4 * ALL -4 * |
| H746A – 4MBC | Straight | – | Std MBC | 1/8″ | -4 * |
| H746A – 5MBC | Straight | Std MBC | 5/32″ | ||
| H746A – 6MBC | Straight | Std MBC | 3/16″ | ||
| H782-4MBC | Offset | Std MBC | 1/8″ | ||
| H782-5MBC | Offset | Std MBC | 5/32″ | ||
| H782-6MBC | Offset | Std MBC | 3/16″ | ||
| H955 -3, -4, -5, -6 | Straight | – | CherryLOCK | 3/32, 1/8, 5/32, 3/16 | -4 * |
