Cherry Aerospace G704B Cherry Aerospace G704B Reconditioned Rivet Gun – Riveter is a pneumatic-hydraulic Gun tool for installation of CherryMAX® 3/4″ (19.05 mm) rivets.Avdel MBC

CALL FOR PRICING

Weight	2.466 kg
Accessories / Related Products	429

Description
Contact Us

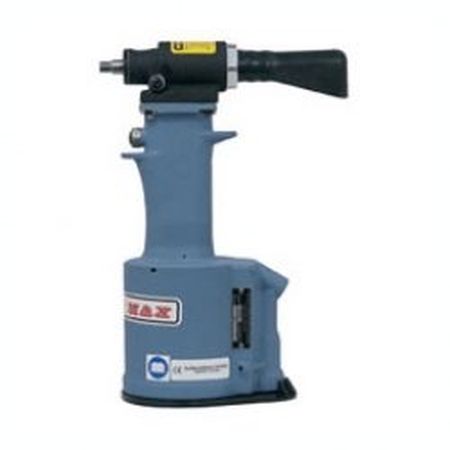

Cherry Aerospace G704B Pneumatic-Hydraulic Rivet Gun – Riveter

Enquire for avalability

Cherry Aerospace G704B Reconditioned Riveter / Rivet Gun

Cherry G704B Rivet Gun is a high speed production riveting tools designed for long life. Cherry pulling heads for rivet guns are not furnished with riveter and must be ordered separately. If you click on links in the rivet gun section, this site will lead you to the pulling head assemblies. If you click on links in the Pulling head assembly section, this site will lead you to the correct Cherry riveting gun. Please call for spare parts.02380 455443

DESCRIPTION
The Cherry G704B is a pneumatic-hydraulic tool designed specifically for the most efficient installation of CherryMAX® 3/4″ (19.05 mm) rivets. Its durable, all metal housing makes this extremely robust tool ideal for use in rugged shop environments. This tool utilizes straight, offset and right-angle pulling heads, all of which can install -4, -5, and -6 diameter CherryMAX® bulb type rivets in all head styles, materials and grip lengths. Extensions are available for extending the pulling heads to reach limited access areas.

SPECIFICATIONS FOR CHERRY G704B
Cherry Aerospace’ (CHERRY) policy is one of continuous development. Specifications shown in this document may be subject to change which may be introduced after publication. For the latest information always consult CHERRY.

AIR PRESSURE 90 PSI (6.2 bar) Min./ 110 PSI (7.6 bar) Max.
STROKE .510 Inch (12.954 mm) PULLING FORCE 3100 Pounds (13.79 kn) @ 90 PSI (6.2 bar)
CYCLE TIME Approximately One Second
WEIGHT 4 1/4 Pounds (1.93 kg)
NOISE LEVEL 71 dB (A)
VIBRATION 2.5 m/s2
AIR CONSUMPTION 3.9 CFM (110.5 liters/M) at 20 Cycles per Minute

Cherry pulling Heads are not furnished with riveter and must be ordered separately.

G704B will instal Avdel MBC rivets correct head assy

Pulling Head	Type	Adaptor	Rivet	Rivet Dia	Max Grip
H701B-456	Straight	–	CherryMax CherryMax ‘AB’ MBC L/C SST	1/8, 5/32, 3/16 (23) 1/8, 5/32, 3/16 1/8, 5/32, 3/16 1/8, 5/32, 3/16	ALL -4* -4 * ALL
H753A-456	Right Angle	–	CherryMax CherryMax ‘AB’ SST	1/8, 5/32, 3/16 (23) 1/8, 5/32, 3/16 1/8, 5/32, 3/16	ALL -4 ALL
H781-456	Offset	–	CherryMax CherryMax ‘AB’ SST MS	1/8, 5/32, 3/16 (23) 1/8, 5/32, 3/16 1/8, 5/32, 3/16 3/32, 1/8, 5/32, 3/16	ALL -4 * ALL -4 *
H9015	Straight	704A9	CherryMax CherryMax ‘AB’ SST MS	1/8, 5/32, 3/16 (23) 1/8, 5/32, 3/16 1/8, 5/32, 3/16 3/32, 1/8, 5/32, 3/16	ALL -4 * ALL -4 *
H746A – 4MBC	Straight	–	Std MBC	1/8″	-4 *
H746A – 5MBC	Straight		Std MBC	5/32″
H746A – 6MBC	Straight		Std MBC	3/16″
H782-4MBC	Offset		Std MBC	1/8″
H782-5MBC	Offset		Std MBC	5/32″
H782-6MBC	Offset		Std MBC	3/16″
H955 -3, -4, -5, -6	Straight	–	CherryLOCK	3/32, 1/8, 5/32, 3/16	-4 *
