Cherry Aerospace G746A Rivet Gun – Riveter is a pneumatic-hydraulic tool specifically for the most efficient installation of CherryMAX® Bulb, CherryMAX® “A” wiredraw,CherryLOCK® “A” wiredraw rivets & Avdel MBC
Cherry Aerospace G746A Rivet Gun – Riveter
Cherry G746A Rivet Gun is a high speed production riveting tools designed for long life. Cherry pulling heads for rivet guns are not furnished with riveter and must be ordered separately. If you click on links in the rivet gun section, this site will lead you to the pulling head assemblies. If you click on links in the Pulling head assembly section, this site will lead you to the correct Cherry riveting gun. Please call for spare parts. 02380 455443
DESCRIPTION

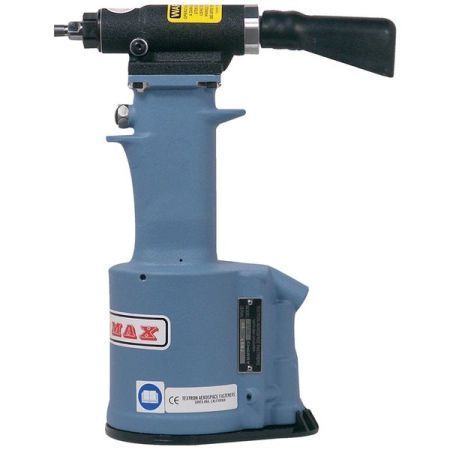

The Cherry G746A is a pneumatic-hydraulic tool designed specifically for the most efficient installation of CherryMAX® Bulb, CherryMAX® “A” wiredraw, and CherryLOCK® “A” wiredraw rivets. This riveter utilizes the straight, offset and right-angle pulling heads. Refer to the pulling head section for the correct pulling head part number for the rivet to be installed. The G746A has a durable metal housing that makes this tool extremely robust for use in a shop environment.
SPECIFICATIONS FOR CHERRY G746A
Cherry Aerospace (CHERRY®) policy is one of continuous development. Specifications shown in this document may be subject to change which may be introduced after publication. For the latest information always consult CHERRY®.
- AIR PRESSURE 90 PSI (6.2 bar) Min. / 110 PSI (7.6 bar) Max.
- STROKE .875 inch (22.23 mm)
- PULLING FORCE 1850 Pounds (8.23 kN) @ 90 PSI (6.2 bar)
- CYCLE TIME Approximately one second
- WEIGHT 4 1/4 Pounds (1.93 kg)
- NOISE LEVEL 72 dB (A)
- VIBRATION 2.5 m/s2
- AIR CONSUMPTION 3.9 CFM (110.5 liters/M) at 20 Cycles per Minute
Cherry pulling Heads are not furnished with riveter and must be ordered separately.
See the Tool Sheet. for mounting,
Avdel MBC rivets can be installed with correct head assy
Pulling Head Type Adaptor Rivet Rivet dia Max Grip H701B-456 Straight N/a CherryMax 1/8,5/32,3/16(2,3). All H701B-456 N/a Cherry Max (AB) 1/8,5/32,3/16(3). -9(1) H753A-456Right Angle N/a CherryMax 1/8,5/32,3/16(2,3). All H753A-456 N/a Cherry Max (AB) 1/8,5/32,3/16(3). -4(1) H781-456Offset N/a CherryMax 1/8,5/32,3/16(2,3). All H781-456Offset N/a Cherry Max (AB) 1/8,5/32,3/16(3). -4(1) H782-456Offset N/a Cherry Max 1/8,5/32,3/16 All H782-456Offset N/a Cherry Max (AB) 1/8,5/32,3/16 -4(1) H9015-3 Straight 704A9 MS 3/32 All H9015-4 Straight 704A9 MS1/8
All H9015-5 Straight 704A9 MS 5/32 All H9015-6 Straight 704A9 MS 3/16 All H955-3 Straight N/a CherryLock (a) 3/32 -9(1) H955-4Straight N/a CherryLock (a) 1/8
