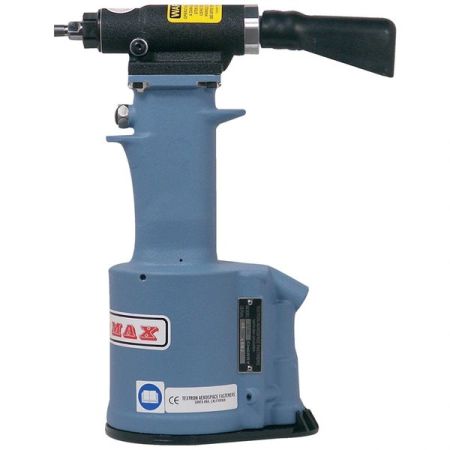

Cherry Aerospace G746A Rivet Gun – Riveter Used / Second Hand

Cherry Aerospace G746A Rivet Gun – Riveter Used / Second Hand is a pneumatic-hydraulic rivet gun tool designed specifically for the most efficient installation of CherryMAX® Bulb, CherryMAX® “A” wire draw,CherryLOCK® “A” wire draw rivets & Avdel MBC

Cherry G746A Rivet Gun is a high speed production riveting  tools designed for long life. Cherry pulling heads for rivet guns are not furnished with riveter and must be ordered separately. If you click on links in the rivet gun section, this site will lead you to the pulling head assemblies. If you click on links in the Pulling head assembly section, this site will lead you to the correct Cherry riveting  gun. Please call for spare parts. 02380 455443

DESCRIPTION
The Cherry G746A is a pneumatic-hydraulic tool designed specifically for the most efficient installation of CherryMAX® Bulb, CherryMAX® “A” wiredraw, and CherryLOCK® “A” wire draw rivets.This riveter utilizes the straight, offset and right-angle pulling heads. Refer to the pulling head section for the correct pulling head part number for the rivet to be installed.The G746A has a durable metal housing that makes this tool extremely robust for use in a shop environment.

SPECIFICATIONS FOR CHERRY G746A
Cherry Aerospace (CHERRY®) policy is one of continuous development. Specifications shown in this document may be subject to change which may be introduced after publication.For the latest information always consult CHERRY®.

• AIR PRESSURE 90 PSI (6.2 bar) Min. / 110 PSI (7.6 bar) Max.
• STROKE .875 inch (22.23 mm)
• PULLING FORCE 1850 Pounds (8.23 kN) @ 90 PSI (6.2 bar)
• CYCLE TIME Approximately one second
• WEIGHT 4 1/4 Pounds (1.93 kg)
• NOISE LEVEL 72 dB (A)
• VIBRATION 2.5 m/s2
• AIR CONSUMPTION 3.9 CFM (110.5 liters/M) at 20 Cycles per Minute
