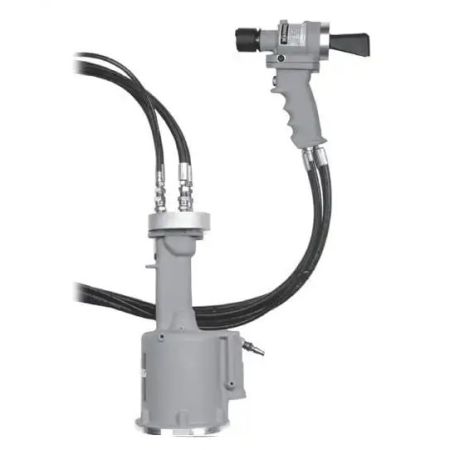

The G85D-S pneumatic-hydraulic lockbolt installation riveter tool is a heavy duty production tool designed for high speed, reliable installation of the most popular sizes of aircraft lockbolts. The G85D-S is a “split” version of the G85D. The power unit sits on the floor and transmits its power through 8 feet of hose to a light weight, ergonomic pistol grip handle. This facilitates fastener installation in many limited access areas and also reduces operator fatigue. Its durable, all metal housing makes this tool very robust for use in a shop environment. By bending the rubber pin deflector sideways, 1-1/2″ additional clearance can be obtained. This tool installs all 3/16″, 1/4″ and 5/16″ diameter lockbolts in all materials and 3/8″ diameter in aluminum. It can also install selected blind bolts and blind rivets.
Pulling heads are not furnished with the tool, and must be ordered separately. See the table below for correct pulling head part number.
SPECIFICATIONS
Air Pressure 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max. at tool Stroke .720 in. (18.3 mm)
