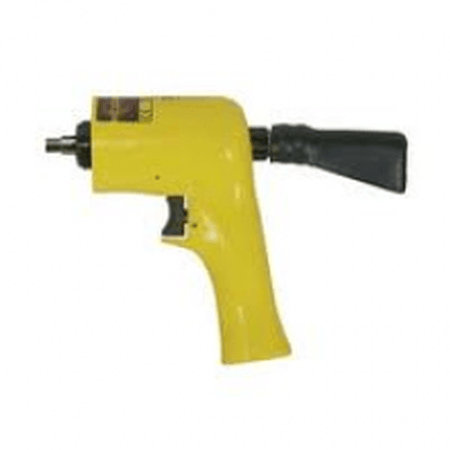

Cherry Aerospace G902 Reconditioned Rivet Gun – Riveter Gun feed-through pneumatic lightweight tools are designed specifically for the most efficient installation of blind rivets.
DESCRIPTION The G902 feed-through pneumatic lightweight tools are designed specifically for the most efficient installation of blind rivets. Its durable, all metal housing makes this extremely robust tool ideal for use in rugged shop environments. This tool utilizes a straight pulling head which can install 3/32″, 1/8’’ pull through type Nut-Plate and 3/32″ CherryLock “A” rivets. Extensions are available for the G902 to allow the pulling heads to reach limited access areas. See the section on pulling heads for the correct pulling head part number.
SPECIFICATIONS FOR G902 Cherry® Aerospace(CHERRY) policy is one of continuous development. Specifications shown in this document may be subject to change which may be introduced after publication. For the latest information always consult CHERRY®.
AIR PRESSURE: 90 PSI to 110 PSI
(6.2 bar to 7.6 bar)
STROKE: 3/4 Inch (19 mm)
PULLING FORCE: 550 Pounds (2.45 kN)
@ 90 PSI (6.2 bar)
CYCLE TIME: One Second approx.
WEIGHT 2 Pounds (.91 kg)
NOISE LEVEL 60 dB (A)
VIBRATION: less than 2.5 m/s2
AIR CONSUMPTION: 05 SCF/Cycle (1.42) L/cycle
Pulling Heads are not furnished with riveter and must be ordered separately.
