Cherry Aerospace H782-4MBC Rivet Gun – Riveter Universal Two Jaw Offset Pulling Head Nose Assembly Fits Cherry G704B cherry G747 & Cherry G746A for 1/8″ MBC rivets

CALL FOR PRICING

Weight0.3825 kg
Accessories / Related Products

Categories: , , ,

cherry h75

PDF Download 2

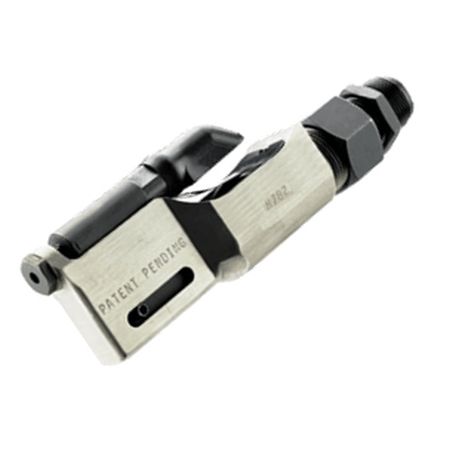

Cherry Aerospace H782-4MBC Rivet Gun – Riveter Universal Two Jaw Offset Pulling Head Fits Cherry G704B cherry G747 & Cherry G746A for 1/8″ MBC rivets

Cherry MBC Rivet Guns are high speed production riveting  tools designed for long life. Cherry pulling heads for rivet guns are not furnished with riveter and must be ordered separately. If you click on links in the rivet gun section, this site will lead you to the pulling head assemblies. If you click on links in the Pulling head assembly section, this site will lead you to the correct Cherry riveting  gun. Please call for spare parts.02380 455443

Universal Two Jaw Offset Pulling Head for 1/8″ MBC rivets

CHOICE OF RIVETERS

The Cherry MBC Pulling Head is recommended to be used with the following Cherry Riveters:

G704B Cherry Rivet gun


G746A Cherry Rivet gun

G747 Cherry Rivet gun

  • STROKE .510 Inch (12.954 mm)
  • PULLING FORCE 3100 Pounds (13.79 kn) @ 90 PSI (6.2 bar)
  • Designed specifically for installation of CherryMAX® 3/4″ (19.05 mm

G747:

  • very compact, light weight,
  • 2200 Lbs force/ .437” stroke
  • G704B: high power, short stroke
  • 3100 Lbs force/ .5” stroke


G746A:

  • very long travel
  • 1850 Lbs force/.875” stroke
  • G902: very compact, long travel
  • 1100 Lbs force/.75” stroke.h782_dimensions.jpg
Part No
 		Installs The Following Products/Diameter
Included
 		782-456Standard Nosepiece

  • CherryMAX: -4, -5 & -6
  • CherryMAX: “AB”: -4, -5 &-6
    (expect -6 aluminium)
  • Blindbolt “S” type: -04 & -05
  • MBC Lock Creator: -4, -5 & -6
Optional
Nosepieces
 		782-6ALCherryMAX “AB”: -6 Aluminium
886-003CherryLOCK “A” Code:-3
886-004CherryLOCK “A” Code:-4
886-005CherryLOCK “A” Code:-5
886-006CherryLOCK “A” Code:-6
782-5BBBlindbolt “U” Type: -05
782-4MBCStandard MBC: -4
782-5MBCStandard MBC: -4
782-6MBCStandard MBC: -4
782-33/32″ SPR and Pull Through Nut Plate Rivets: -3



































Use With Jaws 782-010
Part Number
Install Following Products/Diameters
782-6ALCherryMAX “AB”: -6 Aluminium
886-006CherryLOCK “A” Code:-6
