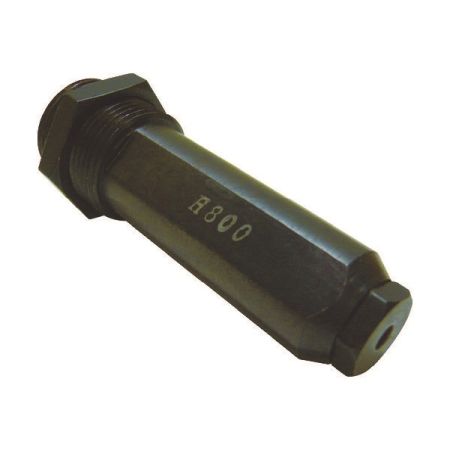

Cherry Aerospace H800 Compact Universal Straight Pulling Head for the G800 riveter

Cherry Aerospace H800 Compact Universal Straight Pulling Head for the G800 riveter

Cherry Aerospace H800 Compact Universal Straight Pulling Head for the G800 riveter

MOUNTING INSTRUCTIONS (see Fig 2)
 Depress the pressure release button of the riveter and make sure the piston is fully returned.
 Place the stem stop & spring inside of the riveter piston
 Thread and tighten the collet assembly onto the riveter piston
 Thread in the sleeve assy and lock it in by tightening the Jam Nut.

JAW ADJUSTMENT
The jaws have to be adjusted to allow front ejection of the spent stem
 Push the fastener all the way through the front nose piece.
 While sliding the stem back and forth inside the nose piece, thread
the sleeve assembly in until the stem is released.
 Lock the sleeve assembly in position by tightening the Jam Nut.

OPERATING INSTRUCTIONS
Prior to tool operation make sure that:
 Pulling Head is correctly mounted on the riveter and jaws are
properly adjusted
 A proper nose-piece in good working condition is used.
