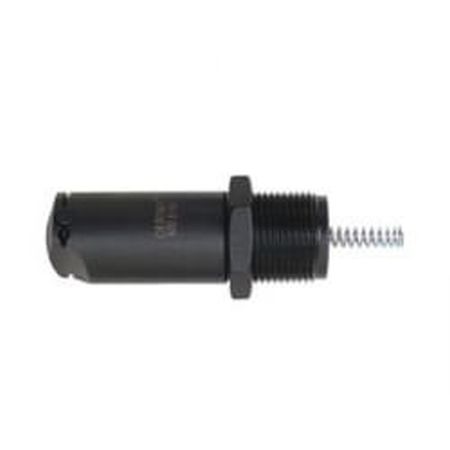

H846A-456 CherryMAX® Pulling Head TECHNICAL DATA SHEET, INSTALLING H846A-456 PULLING HEAD ON RIVETER 1. Place jaws (F) inside of the collet (E). Place bumper (H) and spring (I) over the jaw follower (G) and put this assembly inside collet against jaws. 2. Screw this assembly onto end of head piston and tighten securely using wrenches on flats provided. Use of Loctite #242 is recommended. 3. Thread outer sleeve (c) which contains jam nut (D) snugly into end of head cylinder. Tighten jam nut (D) securely. 4. Refer to parts list below for ordering replacement parts. REF Part No. Description Qty Req REF Part No. Description Qty Req A 701B25 Retaining Ring 1 F 701B18 Jaws (pair) 1 set B 701B24 Stem Stop 2 G 846A23 Jaw Follower 1 C 846B8 Sleeve 1 H 846A15 Bumper 1 D 642A64 Jam Nut 1 I P964 Spring 1 E 846A12 Collet 1
MAINTENANCE AND REPAIR Make sure that the pulling head is kept clean, especially around the riveting end, as adhesives, chips, sealants (etc…) will clog up the serrations of the jaws and may cause slippage of the stem.
