Cherry Aerospace Rivet Gun – Riveter H781A-456 Offset Pulling Head Nose Assembly fits directly on the G701, G704B, G746, G747 and G749 CherryMax® riveters
Cherry Aerospace Rivet Gun – Riveter H781A-456 Offset Pulling Head fits directly on the G701, G704B, G746, G747 and
G749 CherryMax® riveters and to the G750A hand riveter with 750A-088 adapter.
/span>
CherryMAX® \”Bulbed\” Rivet
Cherry (Rivet Gun)H781-456 Pulling Head
Cherry Rivet Guns are high speed production riveting tools designed for long life. Cherry pulling heads for rivet guns are not furnished with riveter and must be ordered separately. If you click on links in the rivet gun section, this site will lead you to the pulling head assemblies. If you click on links in the Pulling head assembly section, this site will lead you to the correct Cherry riveting gun. Please call for spare parts.02380 455443

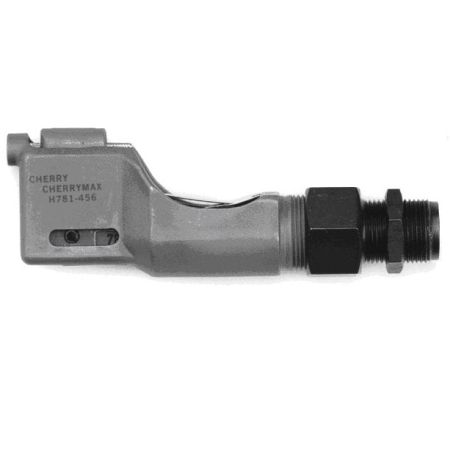

OFFSET PULLING HEAD
The H781-456 Offset Pulling Head fits directly on the G704B , G747 and G746A Riveters and G749 CherryMax® riveters and to the G750A hand riveter with 750A-088 adapter.
It installs 1/8″, 5/32″ and 3/16″ CherryMax® rivets in all materials, head styles and grip lengths.
May be used with Hydro-shift riveters ( G685S, G686S, G689, G700 and G784) with the 680B205 Adapter.
Pulling Head | Type | Adaptor | Rivet | Rivet dia | Max Grip |
H781-456 | Offset | N/a | CherryMax( Bulb) | 1/8,5/32,3/16. | All |
| | | Cherry Max( AB) | | |
| | N/a | InterMax | 1/8,5/32,3/16. | -4 |
