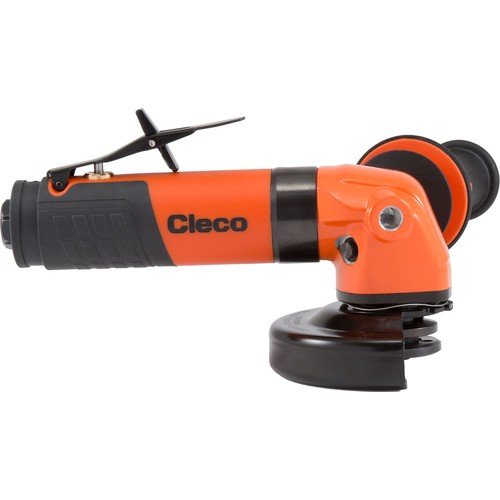

Cleco Tools C3120A45-M14OH – Angle Grinder 1.7 hp | (1.25 kW) 12,000 rpm Abrasive Capacity (Grinder 4.5″ / 115 mm 27 Series Spindle Thread M14 x 2
27 Series
Right Angle Grinder
Features
High-performance 1.7Hp motor delivers maximum power
Quick change spindle lock for fast and easy abrasive changes
Quieter operation with rear exhaust over hose standard
Ergonomic, anti-vibration handle for increased comfort and less operator fatigue
Dual-layer, high-impact composite housing for extreme durability
Versatile 207° adjustable guard for easy access to tight spaces
Available in 4″, 4.5″ and 5″ disc sizes for all Type 27, Type 27 Threaded Hub and Type 1 Abrasive disc’s
COMPARE
MODEL
HORSEPOWER RANGE
FREE SPEED
WHEEL SIZE
WEIGHT
LENGTH
HEAD HEIGHT
AIR INLET SIZE
AIR CONSUMPTION AT FREE SPEED
EXHAUST
AIR CONSUMPTION
MIN HOSE ID
1/min
mm
kg
mm
mm
in
l/s
l/s
mm
C3120A45-M14OH
1.7 hp | (1.25 kW)
12000
115
1.80
227
77
3/8
17
Rear
30.9
12
SPECIFICATIONS
Wheel Type 01/41, 27/42, 27,
27 Threaded
Wheel Size 4.5 in. / 115 mm
Exhaust Type Rear
Spindle Thread M14 x 2
Overhose Standard PERFORMANCE
Rated Power 1.7 Hp/ 1.3 kW
Free Speed 12,000 rpm
AIR SYSTEM
Air Inlet 3/8” NPT
Min Hose Dia. 1/2 in. / 12 mm
Air Cons at Load 65 SCFM / 31 I/s Air Cons at Free Speed 36 SCFM / 17 I/sCleco’s Right Angle Grinders deliver the power, comfort and control you need and expect – for tough and demanding grinding jobs. NOISE & VIBRATION
Sound Pressure / Power (ISO15744) 84 dBA
Sound Power (ISO 15744) 95 dBA
Vibration level (ISO28927) 7.3 m/s²
Uncertainty (k) 5.3
WEIGHT & DIMENSIONS
Tool Weight 3.98 lbs. / 1.80 kg
Tool Length 8.95 in. / 227 mm
Head Height 3.03 in. / 77 mm
