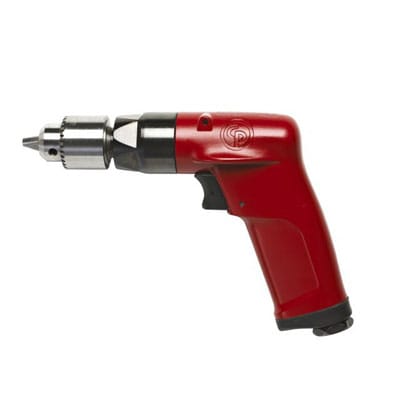

CP Chicago Pneumatic CP1014P33 Chuck 1/4″ (6 mm) industrial pistol drill 3300 rpm pistol drill with Jacobs keyed chuck 375W 1/2hp 6151580030
Benefits
- High productivity thanks to high power with great control and high quality keyed chuck
- Operator comfort thanks to exclusive ergonomic features
- Drills for Industrial Production designed for intensive duty and high durability
Features
- 1/4″ (6 mm) industrial pistol drill with Jacobs keyed chuck
- Ergonomic & compact body
- High power 0.5hp (375W) with excellent control by teasing throttle
- Handle with double wings for precise drilling
- Quiet, Low vibrations
- Durable gearbox reduce maintenance cost and downtime
| Part number | 6151580030 |
| Model | CP1014P33 |
| Chuck capacity | 6 mm | 1/4″ |
| Chuck capacity | 1/4″ | 6 mm |
| SpindleSize_in | 3/8-24 | |
| Free speed | 3300 rpm |
| Power | 375 W |
| Power | 1/2 hp | |
| Stall torque | 2.6 ft.lbs | 3.5 Nm |
| Stall torque | 3.5 Nm | 2.6 ft.lbs |
| Net weight | 0.54 kg | 1.2 lb |
| Net weight | 1.2 lb | 0.54 kg |
| Length | 160 mm | 6.7″ |
| Length | 6.7″ | 160 mm |
| Actual air consumption | 9.0 l/s | 19.0 cfm |
| Actual air consumption | 540 l/mn | 19.0 cfm |
| Actual air consumption | 19.0 cfm | 540 l/mn |
| Free speed air consumption | 10,8 | |
| Air inlet thread size | 1/4 in. |
| Min. hose size | 10 mm | 3/8″ |
| Min. hose size | 3/8″ | 10 mm |
| Noise level | 78 db(A) |
| Sound Power | 89 db(A) |
| Vibration α (ISO-28927-5) | |
| Vibration K (ISO-28927-5) | – m/s² |
| Box dimensions | 170x250x75 |
Chicago Pneumatic CP1014P33 ◦1/4″ (6 mm) industrial pistol drill 3300 rpm pistol drill with Jacobs keyed chuck
