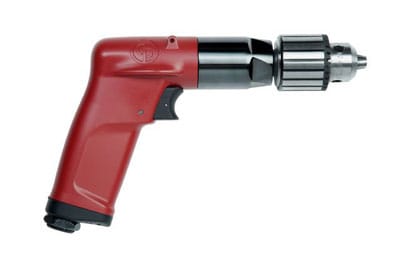

CP Chicago Pneumatic CP1014P45 Pistol drill 1/4 Inch Chuck 4,500 RPM l 6 High speed,Compact,Pistol Drill Durability & Precision .375W 1/2 hp 6151580010
CP Chicago Pneumatic CP1014P45 Pistol drill 1/4 Inch Chuck 4,500 RPM l 6 High speed,Compact,Pistol Drill Durability & Precision .375W 1/2 hp 6151580010
FEATURES
-1/4″ (6mm) industrial pistol drill with Jacobs keyed chuck
-Ergonomic & compact body
-High power 0.5hp (375 W) with excellent control by teasing throttle
-Handle with double wings for precise drilling
-Quiet,Low vibrations
-Durable gearbox reduce maintenance cost and downtime
BENEFITS
-High productivity thanks to high power with great control and high quality keyed chuck
-Operator comfort thanks to exclusive ergonomic features
-Drills for Industrial Production designed for intensive duty and high durabillity
Part number
6151580010
Model
CP1014P45
Chuck capacity
6 mm
1/4″
Chuck capacity
1/4″
6 mm
SpindleSize_in
3/8-24
Free speed
4500 rpm
Power
375 W
Power
1/2 hp
Stall torque
2.4 ft.lbs
3.2 Nm
Stall torque
3.2 Nm
2.4 ft.lbs
Net weight
0.54 kg
1.2 lb
Net weight
1.2 lb
0.54 kg
Length
160 mm
6.7″
Length
6.7″
160 mm
Actual air consumption
10.0 l/s
21.2 cfm
Actual air consumption
600 l/mn
21.2 cfm
Actual air consumption
21.2 cfm
600 l/mn
Free speed air consumption
12,5
Air inlet thread size
1/4 in.
Min. hose size
10 mm
3/8″
Min. hose size
3/8″
10 mm
Noise level
78 db(A)
Sound Power
89 db(A)
Vibration α (ISO-28927-5)
3 m/s²
Vibration K (ISO-28927-5)
1.4 m/s²
Box dimensions
170x250x75
