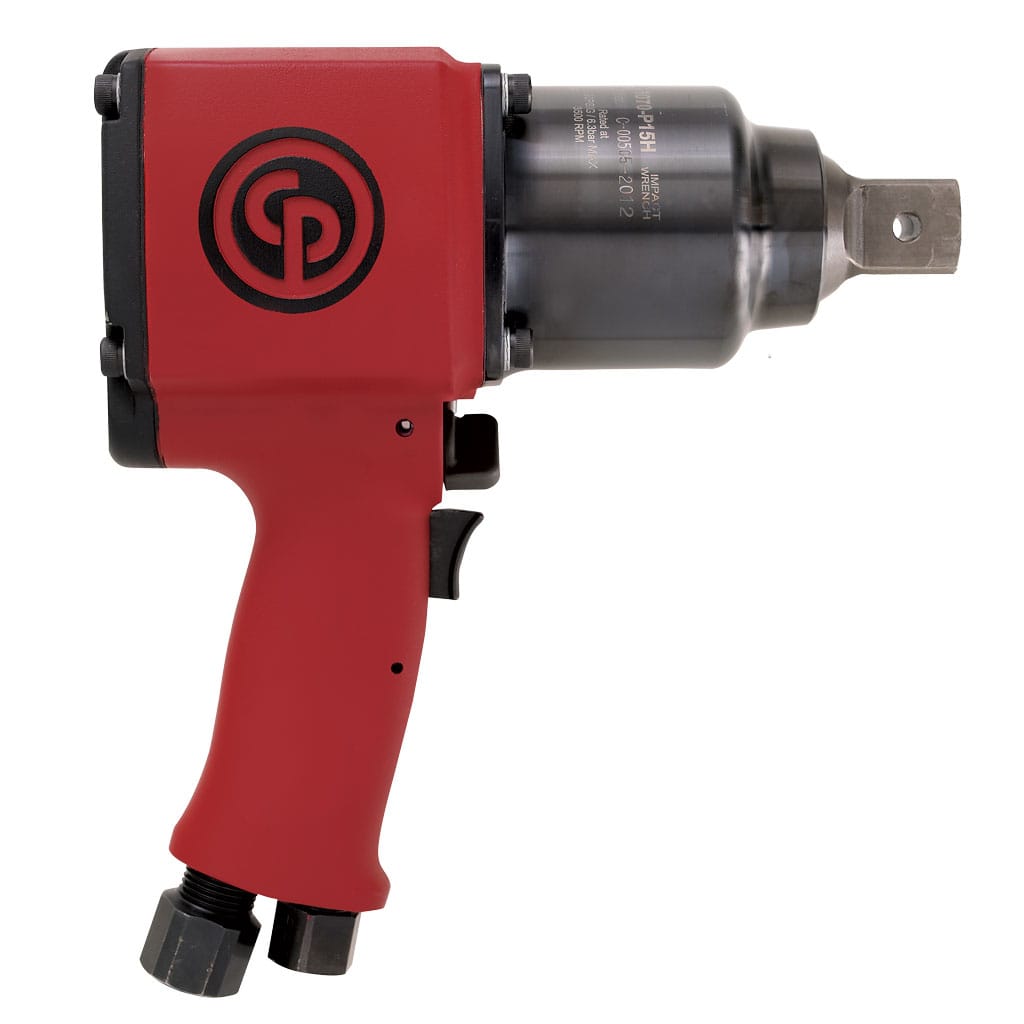

CP Chicago Pneumatic CP6070-P15H Impact Gun / Driver / Wrench 1″ Drive 270 – 1220 Nm 4000 rpm 6151590110
Benefits
- Constant & progressive Performances thanks to the 2-Jaw clutch
- Superior Quality resisting to worst conditions and usages
- Unmatched comfort for the Safety First
- Best 1″ impact lightweight for Industrial Maintenance and Production applications
Features
- Super Industrial lightweight 1″ impact wrench
- Reliable 2-jaw clutch
- Aluminum body & steel clutch housing
- Durable reverse & steel trigger
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-Ring for Safety
| Model | CP6070-P15H | |
| Part number | 6151590110 | |
| Actual air consumption | 25 l/s | 52.9 cfm |
| Air inlet thread size | 3/8 “ | |
| Blows per minute | 1100 | |
| Bolt size | M27 mm | |
| Box dimensions | 295*295*115 mm | 11,6*11,6*4,5 “ |
| Clutch type | 2-jaw clutch | |
| Free speed | 4000 rpm | |
| Free speed air consumption | 35 l/s | 74.1 cfm |
| Handle type | Pistol | |
| Length | 227 mm | 8.9 “ |
| Maximum Torque (reverse) | 1490 Nm | 1100 ft.lbs |
| Min. hose size | 13 mm | 1/2 “ |
| Net weight | 5.4 kg | 11.9 lb |
| Over carton | 310*310*245 mm | 12,2*12,2*9,6 “ |
| Power/weight ratio | 275.9 Nm/kg | 92.4 ft.lb/lb |
| Side to center | 37 mm | 1 1/2 “ |
| Socket retainer | Hole | |
| Sound Power | 103 db(A) | |
| Sound pressure | 92 db(A) | |
| Square drive | 1 “ | |
| VST2 | 35 | |
| Vibration | 13.9 m/s² | |
| Vibration uncertainty (K) | 4.1 m/s² | |
| Vibration-ISO | ISO-28927-2 | |
| Working Torque Range (fwd) | 270 – 1220 Nm | 200 – 900 ft.lbs |
