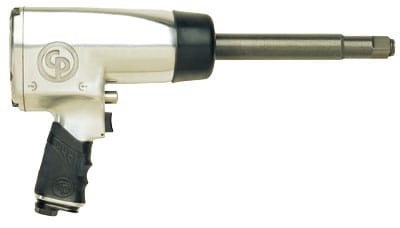

CP Chicago Pneumatic CP722H-6 CP◦3/4″ impact Gun / Driver / Wrench 6″ extended anvil T024757
Benefits
- General Maintenance
- Smooth operation thanks to the DYNA-PACT clutch
- Comfortable use thanks to low noise and vibration levels
- Good durability
Features
- 3/4″ impact wrench for vehicle service
- Plus 6″ extended anvil
- Pin clutch oil bath
- One-handed push button forward/reverse with 4 positive power settings
- Full power in reverse
- New comfortable contoured handle grip
- 360° air inlet swivel
| Part number | T024757 |
| Model | CP772H-6 |
| Handle type | Pistol |
| Square drive | 3/4″ | |
| Working Torque Range (fwd) | 203-949 Nm | 150-700 |
| Working Torque Range (fwd) | 150-700 ft.lbs | 203-949 |
| Maximum Torque (reverse) | 1356 Nm | 1000 ft.lbs |
| Maximum Torque (reverse) | 1000 ft.lbs | 1356 Nm |
| Free speed | 4200 rpm |
| Blows per minute | 900 |
| Net weight | 11.6 lb | 5.3 kg |
| Net weight | 5.3 kg | 11.6 lb |
| Power/weight ratio | 255.8 Nm/kg | 86.2 ft.lb/lb |
| Power/weight ratio | 86.2 ft.lb/lb | 255.8 Nm/kg |
| Length | 15.5″ | 394 mm |
| Length | 394 mm | 15.5″ |
| Average air consumption | 6 cfm | |
| Average air consumption | 2.8 l/s | 6 cfm |
| Actual air consumption | 24 cfm | |
| Actual air consumption | 11.3 l/s | 24 cfm |
| Air inlet thread size | 0.375 “ |
| Min. hose size | 13 mm | 1/2″ |
| Min. hose size | 1/2″ | 13 mm |
| Noise level | 96 db(A) |
| Sound Power | 107 db(A) |
| Vibration (ISO-8662-7) | 4.9 m/s² |
| Vibration α (ISO-28927-2) | 5.8 m/s² |
| Vibration K (ISO-28927-2) | 2 m/s² |
| Socket retainer | Friction ring |
| Clutch type | Pin clutch – Oil bath |
