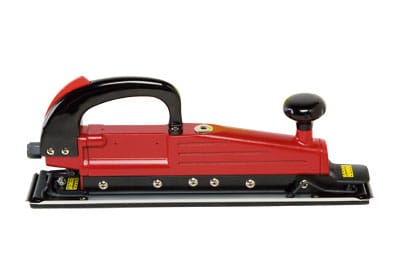

CP Chicago Pneumatic CP7268 Heavy Duty Dual Piston Straightline Sander In Line Sanding Belt sanders 8941072680
CALL FOR PRICING
| Weight | 2.75 kg |
|---|---|
| Accessories / Related Products |
Categories: Chicago Pneumatic CP InLine Sander Heavy Duty
CP Chicago Pneumatic CP7268 Heavy Duty Dual Piston Straightline Sander In Line Sanding Belt sanders 8941072680
Features
- Heavy-duty dual piston straight line sander
- Twin piston rugged design
- Easy comfort trigger and handle
Benefits
- Operator comfort and safe operation
- Ideal tool for fast material removal, body smoothing, and for large surfaces
| Part number | 8941072680 | |
| Model | CP7268 | |
| Pad diameter | 70×445 | 2.75 X 17.5 |
| Pad diameter | 2.75 X 17.5 | 70×445 |
| Paper size | 70×445 | 2.75 X 17.5 |
| Paper size | 2.75 X 17.5 | 70×445 |
| Free speed | 5000 rpm | |
| No-vacuum | No-vacuum | |
| Vacuum | no | |
| Pad holes number | 0 | |
| Height over spindle | 150 mm | 6″ |
| Height over spindle | 6″ | 150 mm |
| Length | 420 mm | 16.5″ |
| Length | 16.5″ | 420 mm |
| Net weight | 2.75 kg | 6.06 lb |
| Net weight | 6.06 lb | 2.75 kg |
| Noise level | 93 db(A) | |
| Sound Power | 104 db(A) | |
| Vibration (ISO-8662-8) | 19 m/s² | |
| Vibration α (ISO-28927-3) | 22.03 m/s² | |
| Vibration K (ISO-28927-3) | 13.51 m/s² | |
| Average air consumption | 4 l/s | 8.5 cfm |
| Average air consumption | 240 l/mn | 8.5 cfm |
| Average air consumption | 8.5 cfm | 240 l/mn |
| Actual air consumption | 5.1 l/s | 10.7 cfm |
| Actual air consumption | 303 l/mn | 10.7 cfm |
| Actual air consumption | 10.7 cfm | 303 l/mn |
| Free speed air consumption | 6.6 l/s | 14 cfm |
| Free speed air consumption | 14 cfm | |
| Min. hose size | 10 mm | 3/8″ |
| Min. hose size | 3/8″ | 10 mm |
| Air inlet thread size | 1/4 | |
