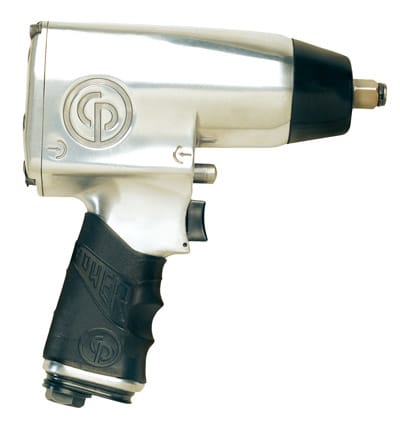

CP Chicago Pneumatic CP734H 1/2 impact Gun / Driver / Wrench With ring retainer T024351
Benefits
- General Maintenance
- Clutch delivers smooth and comfortable operation
- Robust housing and oil bath clutch provide durability
- Versatile tool ideal for all general repairs and maintenance applications
Features
- 1/2″ impact wrench for general maintenance with ring retainer
- DYNA-PACT (Pin clutch) with oil bath
- One-handed reverse button with 4 positive power settings
- Compact and ergotnomic with rubber grip
- Through handle air exhaust and 360° air inlet swivel
| Part number | T024351 |
| Model | CP734H |
| Handle type | Pistol |
| Square drive | 1/2″ | |
| Working Torque Range (fwd) | 34-420 Nm | 25-310 |
| Working Torque Range (fwd) | 25-310 ft.lbs | 34-420 |
| Maximum Torque (reverse) | 576 Nm | 425 ft.lbs |
| Maximum Torque (reverse) | 425 ft.lbs | 576 Nm |
| Free speed | 8400 rpm |
| Blows per minute | 1020 |
| Net weight | 5.13 lb | 2.32 kg |
| Net weight | 2.32 kg | 5.13 lb |
| Power/weight ratio | 161.3 Nm/kg | 54 ft.lb/lb |
| Power/weight ratio | 54 ft.lb/lb | 161.3 Nm/kg |
| Length | 7.5″ | 191 mm |
| Length | 191 mm | 7.5″ |
| Average air consumption | 3.75 cfm | |
| Average air consumption | 1.8 l/s | 3.75 cfm |
| Actual air consumption | 15 cfm | |
| Actual air consumption | 7.1 l/s | 15 cfm |
| Air inlet thread size | 0.25 “ |
| Min. hose size | 10 mm | 3/8″ |
| Min. hose size | 3/8″ | 10 mm |
| Noise level | 93 db(A) |
| Sound Power | 104 db(A) |
| Vibration (ISO-8662-7) | 3.4 m/s² |
| Vibration α (ISO-28927-2) | 7.2 m/s² |
| Vibration K (ISO-28927-2) | 3.3 m/s² |
| Socket retainer | Friction ring |
| Clutch type | Pin clutch |
