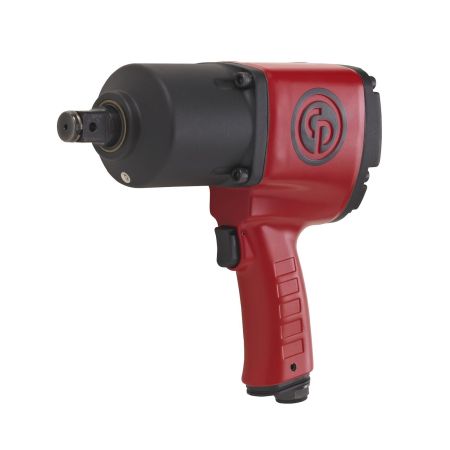

C P Chicago Pneumatic CP7630 Premium Industrial 1-1/2″ Drive Pistol impact Gun / Driver / Wrench 8941076300
Benefits
Powerful
Comfort & compact
Versatile
Best ratio price performance in its class
Features
1500 Nm – 1100 ft / lbs
Well balanced minimizing wrist strain
Handle fits perfectly in the hand
Suited for all maintenance applications
– Vans & Heavy vehicles mechanical repair
– MRO applications
Not marketed in USA and Canada
| Model | CP7630 | |
| Part number | 8941076300 | |
| Actual air consumption | 9.7 l/s | 21 cfm |
| Air inlet thread size | 3/8 “ | |
| Average air consumption | 2.4 l/s | 5.1 cfm |
| Clutch type | Twin hammer | |
| European Standards | EN ISO 11148-6:2013 | |
| Free speed | 6900 rpm | |
| Free speed air consumption | 22.5 l/s | 47.66 cfm |
| Handle type | Pistol | |
| Length | 240 mm | 9.45 “ |
| Maximum Torque (reverse) | 1500 Nm | 1100 ft.lbs |
| Min. hose size | 13 mm | 1/2 “ |
| Net weight | 4.8 kg | 10,648 lb |
| Socket retainer | Friction ring + hole | |
| Sound Power | 116.3 db(A) | |
| Sound pressure | 105.3 db(A) | |
| Square drive | 3/4 “ | |
| Vibration | 9.8 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | 3 m/s² | |
| Working Torque Range (fwd) | 177 – 1,097 Nm | 130 – 810 ft.lbs |
