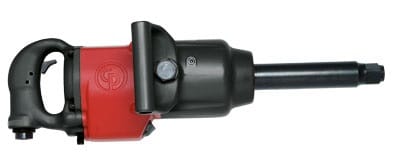

CP7640-6 - Efficient impact gun / wrench

CP Chicago Pneumatic CP7640-6 – 1 inch Drive impact Gun / Driver / Wrench Working Torque Range (fwd) 200-1,225 Nm 150-900 8941007976

CALL FOR PRICING

Available on backorder

Weight	13.49 kg
Accessories / Related Products	5360

Categories: Chicago Pneumatic CP Industrial Impact Gun - Wrench- Driver, CP Chicago Pmeumatic Impact Guns, CP Chicago Pneumatic - Impact Wrench 1 inch drive

Description
Contact Us

Discontinued

CP Chicago Pneumatic CP7640-6 – Efficient Clutch delivers smooth operation and durability. impact Gun / Driver / Wrench Working Torque Range (fwd) 200-1,225 Nm 150-900 8941007976

Benefits

Clutch delivers smooth operation and durability
Ideal for high volume work on maintenance, trucks, buses, and heavy equipment

Features

1″ straight impact wrench
Rocking dog clutch
Teasing throttle
Inside trigger
Plus 6″ extended anvil

Part number	8941007976
Model	CP7640-6
Discontinued	Discontinued
Handle type	D-Handle Inside Trigger
Square drive	1″
Working Torque Range (fwd)	200-1,225 Nm	150-900
Maximum Torque (reverse)	1898 Nm	1400 ft.lbs
Free speed	4000 rpm
Blows per minute	1.08
Net weight	13.49 kg	29.75 lb
Power/weight ratio	140.7 Nm/kg	47.1 ft.lb/lb
Length	565 mm	22.25″
Average air consumption	4.7 l/s	10 cfm
Actual air consumption	18.9 l/s	40 cfm
Air inlet thread size	0.5 “
Noise level	110 db(A)
Sound Power	121 db(A)
Vibration (ISO-8662-7)	7.6 m/s²
Socket retainer	Friction ring
Clutch type	Double rocking dog – Oil bath
