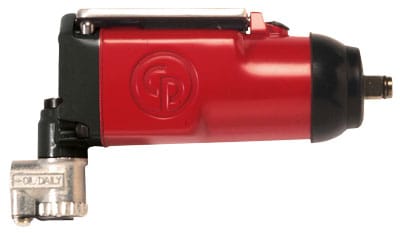

CP7722 - Compact for easier access impact gun /wrench

CP Chicago Pneumatic CP7722 – Compact for easier access 3/8″ butterfly impact Gun / Driver / Wrench for general maintenance Butterfly forward/reverse throttle impact wrench 8941077

CALL FOR PRICING

Weight	1 kg
Accessories / Related Products	5326

Categories: Chicago Pneumatic CP Industrial Impact Gun - Wrench- Driver, CP Chicago Pmeumatic Impact Guns, CP Chicago Pneumatic - Impact Wrench 3/8 inch drive

Description
Contact Us

CP Chicago Pneumatic CP7722 – Compact for easier access. impact Gun / Driver / Wrench 8941077220

Benefits

Perfect for assembly/dissasembly operation with limited access areas or vertical tightenings
Comfort and smooth operation thanks to the clutch benefits
Excellent maneuverability with the 360° swivel air inlet
and light weight
Ideal for the genral maintenance of small engines, compressors, generators, …

Features

3/8″ butterfly impact wrench for general maintenance
Butterfly forward/reverse throttle
Rocking dog clutch for smooth operations and durability
4 positive power settings
360° air inlet swivel

rt number	C P Chicago Pneumatic
Model	CP7722
Handle type	Butterfly
Square drive	3/8″
Working Torque Range (fwd)	7-88 Nm	5-65
Maximum Torque (reverse)	122 Nm	90 ft.lbs
Free speed	9500 rpm
Blows per minute	1400
Net weight	1.0 kg	2.1 lb
Power/weight ratio	122 Nm/kg	42.9 ft.lb/lb
Length	160 mm	6.3″
Average air consumption	1.5 l/s	3.2 cfm
Actual air consumption	6 l/s	13 cfm
Air inlet thread size	0.25 “
Noise level	97 db(A)
Sound Power	108 db(A)
Vibration (ISO-8662-7)	4.3 m/s²
Vibration α (ISO-28927-2)	4 m/s²
Vibration K (ISO-28927-2)	1.4 m/s²
Socket retainer	Friction ring
Clutch type	Rocking dog clutch
