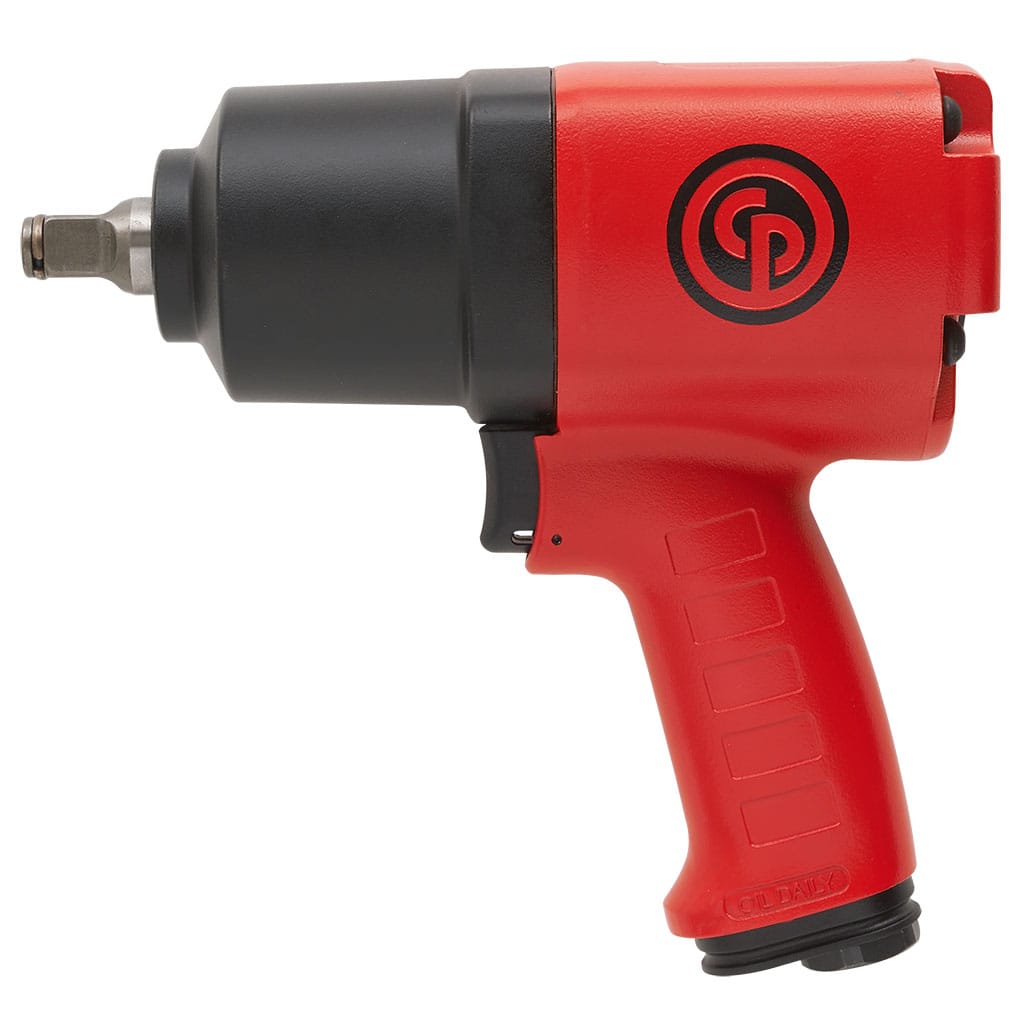

C P Chicago Pneumatic CP7736 – 1/2″ impact Gun / Driver / Wrench ◦ Double-Dog clutch impact wrench 69-770 Nm 10020 rpm 8941077360
CALL FOR PRICING
Weight | 2.58 kg |
---|---|
Accessories / Related Products |
C P Chicago Pneumatic CP7736 – 1/2″ impact Gun / Driver / Wrench ◦ Double-Dog clutch impact wrench 8941077360
Benefits
- Powerful
- Durable
- Comfort and compact
- Versatile
- Easy to use
- Best ratio price performance in its class
Features
- 670 ft. lbs. – 900 Nm max in reverse
- Twin hammer mechanism and steel motor
- Well balanced minimizing wrist strain
- Ergonomic handle fits perfectly in the hand
- Suited for all maintenance applications
- – Light vehicles tire changing operations
- – Light vehicles mechanical repair
- – MRO applications
- 3 power settings in forward and one in reverse
Part number | 8941077360 | |
Model | CP7736 | |
Handle type | Pistol | |
Square drive | 1/2″ | |
Working Torque Range (fwd) | 69-770 Nm | 51-570 |
Maximum Torque (reverse) | 900 Nm | 665 ft.lbs |
Free speed | 10020 rpm | |
Net weight | 2.58 kg | 5.7 lb |
Length | 192 mm | 7.6″ |
Side to center | 70 mm | 2.8″ |
Average air consumption | 2.1 l/s | 4.4 cfm |
Actual air consumption | 8.3 l/s | 18 cfm |
Air inlet thread size | 0.25 “ | |
Min. hose size | 10 mm | 3/8″ |
Sound pressure | 93.8 db(A) | |
Sound Power | 107.8 db(A) | |
Vibration α (ISO-28927-2) | 9.5 m/s² | |
Vibration K (ISO-28927-2) | 2.2 m/s² | |
Socket retainer | Friction ring | |
Clutch type | Double-Dog |
