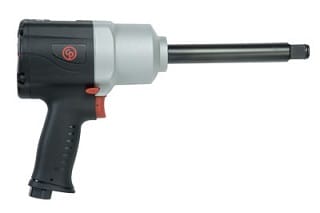

CP Chicago Pneumatic CP7769-6 – High productivity, low consumption & ergonomic ◦ 3/4″ composite impact Gun / Driver / Wrench with 6″ extended anvil◦1,440 ft.lbs (1,950Nm) of maximu
CALL FOR PRICING
Available on backorder
Weight | 4 kg |
---|---|
Accessories / Related Products |
CP Chicago Pneumatic CP7769-6 – High productivity, low consumption & ergonomic Powerful impact for General Maintenance. impact Gun / Driver / Wrench 8941077696
Benefits
- Powerful impact for General Maintenance
- Maximize operator comfort due to the lightweight and balanced design
- Energy savings thanks to low air consumption
Features
- 3/4″ composite impact wrench with 6″ extended anvil
- 1,440 ft.lbs (1,950Nm) of maximum torque in reverse
- Low consumption air motor at 31 cfm (14.7 l/s)
- Insulating and lightweight composite handle
- S2S easy forward reverse
- Lightweight with a magnesium clutch housing
- Universal & durable twin hammer mechanism
- Full teasing developed trigger
Part number | 8941077696 | |
Model | CP7769-6 | |
Handle type | Pistol | |
Square drive | 3/4″ | |
Working Torque Range (fwd) | 407-1,464 Nm | 300-1,080 |
Maximum Torque (reverse) | 1950 Nm | 1440 ft.lbs |
Free speed | 7000 rpm | |
Blows per minute | 1200 | |
Net weight | 4 kg | 8.8 lb |
Power/weight ratio | 487.5 Nm/kg | 163.6 ft.lb/lb |
Length | 365 mm | 14.4″ |
Side to center | 39 mm | 1.53″ |
Average air consumption | 3.7 l/s | 7.75 cfm |
Actual air consumption | 14.7 l/s | 31 cfm |
Air inlet thread size | 0.375 “ | |
Min. hose size | 13 mm | 1/2″ |
Sound pressure | 97 db(A) | |
Sound Power | 108 db(A) | |
Vibration α (ISO-28927-2) | 12.6 m/s² | |
Vibration K (ISO-28927-2) | 3.4 m/s² | |
Socket retainer | Dual (hole+friction) | |
Clutch type | Twin hammer | |
Box dimensions | 410*260*105 | 16.1*10.2*4.1 |
Over carton | 424*267*253 | 16.7*10.5*9.2 |
