CP Chicago Pneumatic CP7778SP-6 – Industrial Impact Gun / Driver / Wrench #5 spline 400 – 1,800 Nm 5000 rpm 8941077781

CALL FOR PRICING

Available on backorder

Accessories / Related Products

Categories: , ,

CP Logo

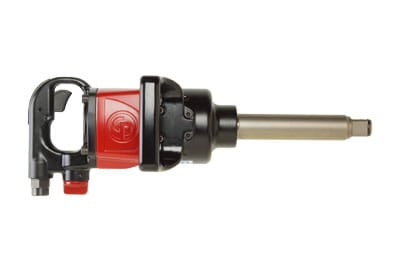

CP Chicago Pneumatic CP7778SP-6 –  Industrial Impact Gun / Driver / Wrench with  #5 Spline 8941077781

Benefits

  • High efficiency motor, yet economical
  • Ideal tool for tire work, general repair and maintenance

Features

  • 1″ heavy-duty impact wrench
  • Rocking dog clutch
  • High efficiency 6-vane motor
  • 3-position power settings with directional control
  • Angled down exhaust
  • Plus 6″ extended anvil and #5 spline
Part number8941077781
ModelCP7778SP-6
Handle typeD-Handle Inside Trigger
Square drive#5 spline”
Working Torque Range (fwd)400 – 1,800 Nm300 – 1,330
Maximum Torque (reverse)2200 Nm1620 ft.lbs
Free speed5000 rpm
Net weight11.5 kg25.4 lb
Power/weight ratio191.3 Nm/kg63.8 ft.lb/lb
Length513 mm20.2″
Average air consumption4.1 l/s8.7 cfm
Actual air consumption16.5 l/s35 cfm
Air inlet thread size0.5 “
Min. hose size13 mm1/2″
Noise level106 db(A)
Sound Power117 db(A)
Vibration (ISO-8662-7)9.1 m/s²
Vibration α (ISO-28927-2)10.1 m/s²
Vibration K (ISO-28927-2)2.9 m/s²
Socket retainer#5 spline
Clutch typePinless rocking dog
