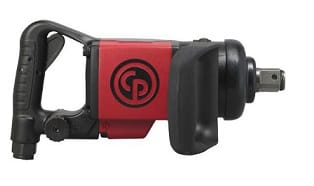

CP7780 - Lightweight impact gun / wrench

CP Chicago Pneumatic CP7780 – Lightweight 1″ impact Gun / Driver / Wrench 350-1650 Nm 5000 rpm 8941077800

CALL FOR PRICING

Available on backorder

Weight6.8 kg
Accessories / Related Products

Categories: , ,

CP Logo

CP Chicago Pneumatic CP7780 – Lightweight for General Maintenance. Gun / Driver / Wrench 8941077800

Benefits

  • Maximize operator comfort with a lightweight impact
  • ergotnomic and intuitive handling
  • High Power to Weight ratio for General Maintenance applications

Features

  • 1″ D-Handle impact wrench with Dual retainer (Hole + Ring)
  • Only 15 lbs (6,8kg) for one the best lightweight tool
  • Integrated protective cover on the clutch housing
  • Twin hammer mechanism in oil bath for durability
  • Double stage trigger and dedicated lever for forward & reverse
  • ergotnomic side handle with soft touch grip
  • 4-position power setting for both directions and on both sides of the tool
Part number8941077800
ModelCP7780
Handle typeD-Handle Inside Trigger
Square drive1″
Working Torque Range (fwd)350-1650 Nm260-1220
Maximum Torque (reverse)2100 Nm1550 ft.lbs
Free speed5000 rpm
Blows per minute790
Net weight6.8 kg15 lb
Power/weight ratio308.8 Nm/kg103.3 ft.lb/lb
Length335 mm13.2″
Average air consumption5.6 l/s12 cfm
Actual air consumption23.4 l/s49.8 cfm
Air inlet thread size0.5 “
Min. hose size13 mm1/2″
Noise level94 db(A)
Sound Power105 db(A)
Vibration α (ISO-28927-2)15.5 m/s²
Vibration K (ISO-28927-2)5.9 m/s²
Socket retainerDual (hole+friction)
Clutch typeTwin hammer oil bath
Bolt sizeM30
Box dimensions387*221.8*140 15.2*8.7*5.5
Over carton406*233*303 16*9.2*11.9
