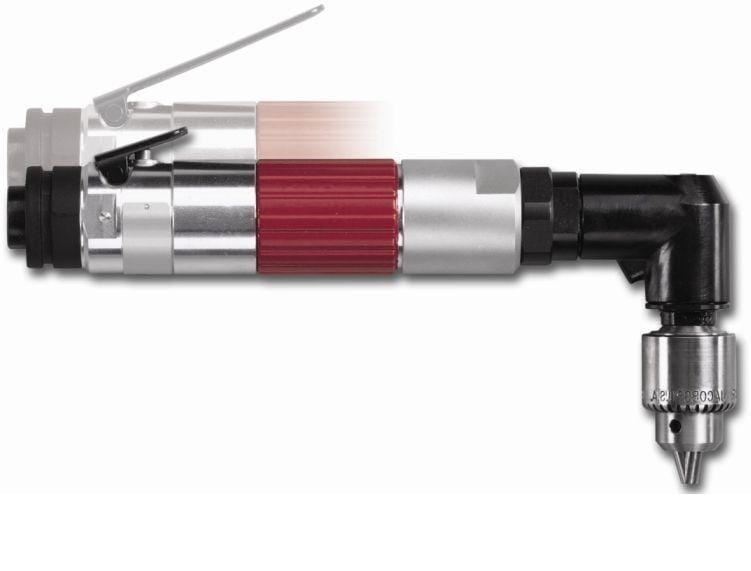

CP Desoutter 1383584 Heavy Duty 90Deg Angle Head Drill 8mm (5/16″) Capacity D3143-L-2100
THIS PRODUCT HAS BEEN DISCONTINUED – PLEASE SEE REPLACEMENT PRODUCT DR300 SERIES
Part no
1383584
Description
D3143-L-2100
Operation
Lever start
Series type
H/Duty 90º Key Chuck
Spindle or chuck type
8mm (5/16″) Capacity
Free Speed
rpm
2100
Chuck size
in
1/2
Motor power
hp
0.38
Length
in
9.92
Weight
lb
2.1
Air Flow
cfm
19.9
Air Inlet
NPT
1/4
Air Hose Bore
in
1/4
Sound Level
dB(A)
–
Vibration Level
m/s²
–
Reliability & Servicing – Modular construction provides ease of servicing – Minor and major service kits available to ensure a ‘right first time’ service
CP Desoutter Heavy Duty 90Deg Angle Head Drill (D3143-L-2100)1383584
Considerations
• Size of hole to be drilled
• Cutting speed of material to be drilled
• Application – access to hole position
• Type of drill bit to be used
• Tool orientation
• Operator comfort/preference
Optimal cutting speed = Optimal cycle time = Productivity
There are also other considerations to be taken into
account when selecting the right tool for the job.
Select the tool with the appropriate capacity and collet/
chuck to suit the size of drill bit and hole to be drilled.
