CP Desoutter 6151700310 Straight In-Line, 31,000rpm, Grinder KC331-7 Max Collet 1/4″ – 6.4 mm (375 Watts )

CALL FOR PRICING

Weight	0.835 kg
Accessories / Related Products	6211

Categories: Desoutter Air Routers, Desoutter Straight inline Die grinder CNOMO Collet:, Desoutter Straight Inline Die Grinder With CNOMO Type Collets

Description
Contact Us

CP Desoutter 6151700310 Straight In-Line, 31,000rpm, Grinder KC331-7 (375 Watts )

( Can be used with router kit )

KC331-7 TECHNICAL DESCRIPTION

Part Number	6151700310
Vibration (m/s**2)	<2.5
Air inlet thread size (in)	1/4
Air inlet thread type	BSP
Rotative inlet	No
Max power	370 W
Spindle lock	No
Length (L)	177 mm
Collet type	Cnomo type
Free Speed	31000 rpm
Main Material type	Aluminum, Composite over-sleeve
Sound Pressure	77 dba
Weight	0.4 kg
Exhaust	Rear
Governor type	Ball
Air consumption at load	9.5 ft**3/min
Air consumption at load	4.5 l/s
Collet max capacity	1/4 (6.4mm)
Min hose dia (5 m hose length)	8 mm
Starting system	Safety lever
Weight	0.88 lbs-mass
Angle Type	Straight

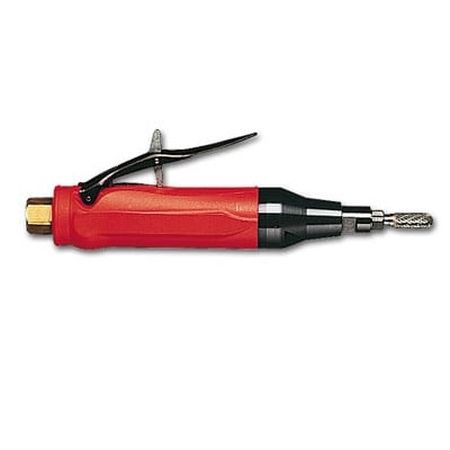

CP Desoutter Straight In-Line Grinder (KC331-7)

CP Industrial Grinders:
These tools are suitable for high production rates such as those on production/ assembly lines, where high durability is required and the tools are used frequently. Our industrial tools combine the best of quality, durability and ergonomics for your most demanding applications.
