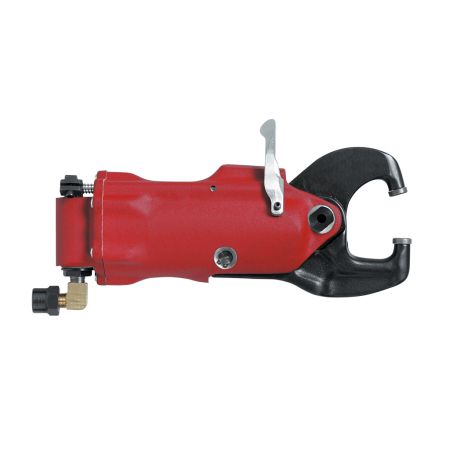

CP Desoutter Compression Riveter, CP Single cylinder Riveter, Jaw, 57.1mm(2 1/4″) Std Reach, Rivet CR1 ø4.8mm(3/16″) (CP0214ANFEL) T018671

CALL FOR PRICING

Weight	2.5 kg
Accessories / Related Products	4389

Categories: Aerospace Compression Riveter Alligator Yoke, Compression riveter - Squeezer, CP Desoutter Compression Alligator Riveter, CP Desoutter Compression Riveter, Pneumatic Compression Air Riveter - Squeezer

Description
Contact Us

CP Desoutter Compression Riveter, CP Single cylinder Riveter, Jaw, 57.1mm(2 1/4″) Std Reach, Rivet CR1 ø4.8mm(3/16″) (CP0214ANFEL) For Solid Rivets T018671

Link to rivet Snaps

Part no CP Single cylinder Riveter		T018671
Description		CP0214ANFEL
Capacity aluminum	in	3/32
Capacity steel	in	3/32
Std yoke dimensions reach	in	2 1/4
Std yoke dimensions closed height	in	7/8
Max force (90 psi/ 6.2 bar)	lb	2200
Moving plunger max. travel	in	7/16
Moving plunger final part of stroke at max. force	in	0.094
Cylinder type		Single
Rivet set type		CR-1 (Ø3/16
Length	in	10
Weight	lb	4 1/4
Sound Level	dB(A)	90
Sound Power	dB(A)	101

CP Desoutter Compression Riveter (CP0214ANFEL)

CP Single cylinder Riveter

Features –

Single cylinder
Std Jaw 2 1/4″ reach
For Solid Rivets 3/32 ” Alloy 3/32″ steel

Riveting capacity –

diameter 3/32″ Aluminium
diameter 3/32″ Steel

CP Desoutter Industrial Sanders:

‘Alligator’ jaw tools are used where there is restricted access (up to 9 1/8′ / 232mm reach)
Note: the amount of reach required is determined by the distance from the rivet centreline to the accessible edge of the workpiece.
Lock-off throttle – reduces the risk of accidental operation
