CP Desoutter Compression Riveter, Tandem Cylinder, Jaw, 178mm (7″) Std Reach, Rivet CR1 ø4.8mm(3/16″) (CP0351ESREL) For Solid Rivets T012604
Link to rivet Snaps
Part no
T012604
Description
CP0351ESREL
Capacity aluminum
in
3/16
Capacity steel
in
5/32
Std yoke dimensions reach
in
7
Std yoke dimensions closed height
in
1 1/2
Max force (90 psi/ 6.2 bar)
lb
6000
Moving plunger max. travel
in
1 11/16
Moving plunger final part of stroke at max. force
in
0.188
Cylinder type
Tandem
Rivet set type
CR-1 (Ø3/16
Length
in
27 7/8
Weight
lb
27
Sound Level
dB(A)
96
Sound Power
dB(A)
107

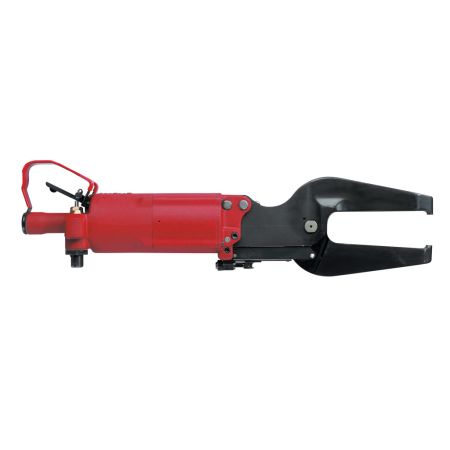

CP Desoutter Compression Riveter (CP0351ESREL)
Features –
Tandem cylinder
Std Jaw 7″ reach
Riveting capacity –
diameter 3/16″ (4.8mm) Aluminium
diameter 5/32″ (4.0mm) Steel
CP Desoutter Industrial Sanders:
‘Alligator’ jaw tools are used where there is restricted access (up to 9 1/8′ / 232mm reach) Note: the amount of reach required is determined by the distance from the rivet centreline to the accessible edge of the workpiece. Lock-off throttle – reduces the risk of accidental operation
