CP Desoutter Compression Riveter, Tandem Cylinder, Jaw, 38.1mm (1 1/2″) Std Reach, Rivet CR1 ø4.8mm(3/16″) (CP0214ENBEL) For Solid Rivets T018678
Link to rivet Snaps
Part no
T018678
Description
CP0214ENBEL
Capacity aluminum
in
3/16
Capacity steel
in
5/32
Std yoke dimensions reach
in
1 1/2
Std yoke dimensions closed height
in
7/8
Max force (90 psi/ 6.2 bar)
lb
6000
Moving plunger max. travel
in
5/8
Moving plunger final part of stroke at max. force
in
0.063
Cylinder type
Tandem
Rivet set type
CR-1 (Ø3/16
Length
in
11 15/16
Weight
lb
4 3/4
Sound Level
dB(A)
90
Sound Power
dB(A)
101

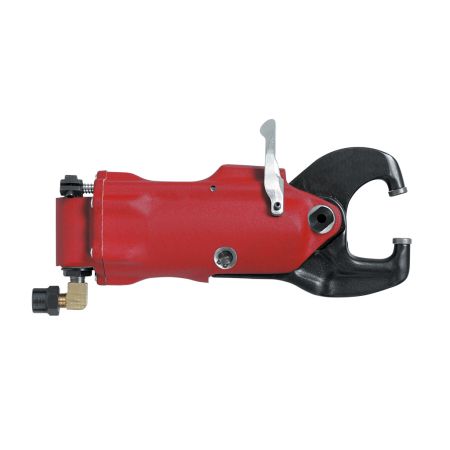

CP Desoutter Compression Riveter (CP0214ENBEL)
Features –
Tandem cylinder
Std Jaw 1 1/2″ reach
Riveting capacity –
diameter 3/16″ (4.8mm) Aluminium
diameter 5/32″ (4.0mm) Steel
CP Desoutter Industrial Sanders:
‘Alligator’ jaw tools are used where there is restricted access (up to 9 1/8′ / 232mm reach) Note: the amount of reach required is determined by the distance from the rivet centreline to the accessible edge of the workpiece. Lock-off throttle – reduces the risk of accidental operation
