CP Desoutter T008955 Compression Riveter, CP Twin cylinder Riveter, C Yoke, (Rivet Squeezer) CP0351CUDEL

CALL FOR PRICING

Weight6.8 kg

Desoutter logo Industrial

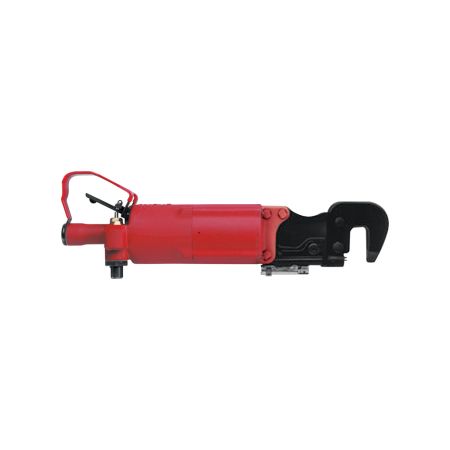

CP Desoutter T008955 Compression Riveter, CP Twin cylinder Riveter, C Yoke, (Rivet Squeezer)

54.0mm(2 1/8″) Std Reach, Rivet CR1 ø4.8mm(3/16″) CP0351CUDEL

Link to rivet Snaps

Part no T008955
Description CP0351CUDEL
Capacity aluminum in 3/16
Capacity steel in 5/32
Std yoke dimensions reach in 2 1/8
Std yoke dimensions closed height in 25/32
Max force (90 psi/ 6.2 bar) lb 6000
Moving plunger max. travel in 9/16
Moving plunger final part of stroke at max. force in 0.125
Cylinder type Single
Rivet set type CR-1 (Ø3/16
Length in 17 1/2
Weight lb 12 1/2
Sound Level dB(A) 96
Sound Power dB(A) 107

CP Desoutter Compression Riveter (CP0351CUDEL)

CP Single cylinder Riveter
C Yoke riveter Jaws 2
C Yoke riveter Jaws 3
Features –
  • Single cylinder
  • Std Yoke 2 1/8″
Riveting capacity –
  • diameter 3/16″ (4.8mm) aluminium
  • diameter 5/32″ (4.0mm) steel

Desoutter Industrial Riveters:
These tools are suitable for high production rates such as those on production/ assembly lines, where high durability is required and the tools are used frequently. Desoutter industrial tools combine the best of quality, durability and ergonomics for your most demanding applications.

C Yoke tools are used where there is open access (up to 2 1/8′ / 54mm reach)
Short stroke adjustment – aids positioning of the tool (limits the return travel of the moving set of the tool on the rivet to reduce the starting clearance between rivet and rivet sets)
Note: the amount of reach required is determined by the distance from the rivet centreline to the accessible edge of the workpiece.
Actuation throttle guard – reduces the risk of accidental operation.
