Designed to improve operator ergonomics, whilst improving your production quality, Desoutter’s range of reactionless balancers have a working load up to 200 Kg, and feature either nylon or steel cables, a safety chain as standard, and a 360° swivelling safety hook for isolated suspension. Additionally, the durable impact-resistant housing, in either plastic or aluminium, and integrated drum lock improve operator safety and boost your productivity.
22D TECHNICAL DESCRIPTION
Part number
50072
Model
22D
Ergonomics
yes
Features
Spring balancer Steel housing Steel cable Additional support chain included Capacity: 6 – 10 Kg (13,2 – 22 lb) Cable travel: 2,4m (7,8 ft)
Min. capacity
6 kg
Max. capacity
10 kg
Cable travel
2.4 m
Net weight
3.2 kg
Features –
Min Capacity 6 kg/13.2 lb
Max Capacity 10 kg/ 22 lb
Cable Travel 2.4 m/7.8 ft
Weight 3.2 kg/7.1 lb

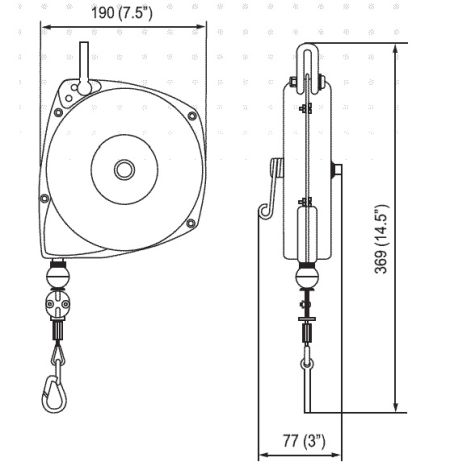

Dimensions –
A 190 mm /7.5 in
B 369 mm/14.5 in
C 77 mm/3.0 in
