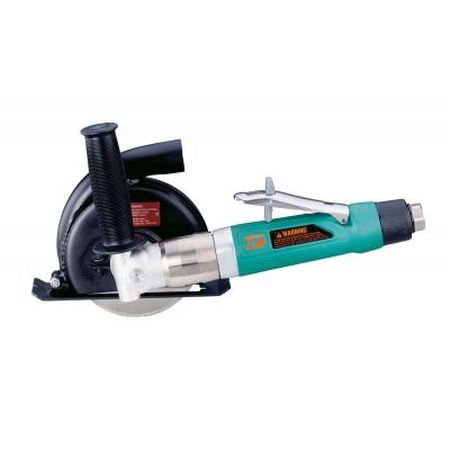

Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.
5″ Diameter, Right Angle, 1 hp, 12,000 RPM, Rear Exhaust.
Ideal for use with optional 5″ diameter Diamond Cut-Off Wheels. Adjustable wheel guard has vacuum port (1-1/4″ outside diameter) that diverts airborne dust and debris to to optional vacuum source.
Powerful, high-quality air motor is effective for cutting through metals, thick fiberglass over-wrap and fiber spray.
Blade guide allows operator to expose up to 1-1/8″ depth of Cut-Off Wheel if required. Safety-lock lever is included.
Abrasive Wheel Dia. [inches]
5″
hp
1.0
Max. Air Flow [SCFM]
40.0
Max. RPM
12,000
Tool Spindle Thread
3/8-24 Male
Air Inlet Thread
3/8″ NPT
Exhaust Type
Rear
Hose I.D. [inches]
3/8″
Vacuum Type
Vacuum
Motor Type
Rotary Vane
Width [inches]
9.5
Length [inches]
14.625
Height [inches]
4.5
CE Certified
Yes
EAN (UPC) Code
0616026524385
EAC Certified
Yes
Item Weight [pounds]
6.7
Tool Style
7 Degree Offset
