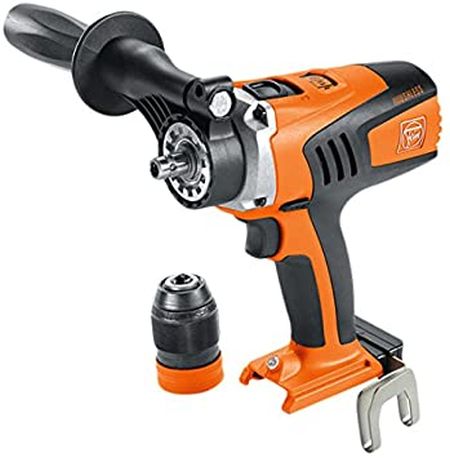

4-speed cordless drill/driver with brushless motor and QuickIN MAX interface. No compromise on performance for drilling and tapping up to 12 mm and drilling with carbide hole saws.
Technical data
TECHNICAL DATA
Battery voltage 18 V
Battery compatibility Li-ion / HighPower Li-ion
Battery interface 18 V
Motor brushless
Gearbox 4-speed
Accessory interface QuickIN MAX
Speed, no load 400 / 800 / 1,950 / 3,850 rpm
Max. torque (hard/soft) 90 / 45 Nm
Torque levels 15 + 1
Drill chuck clamping width 1.5 – 13 mm
Fastening 10 x 400 mm
Capacity in steel Ø 25 mm
Capacity in wood Ø 50 mm
Tapping M 12
Weight without storage battery 1.50 kg
VIBRATION AND SOUND EMISSION VALUES
Sound pressure level LpA 73 dB
Uncertainty of measured value KpA 3 dB
Sound power level LWA 84 dB
Uncertainty of measured value KWA 3 dB
Sound peak value LpCpeak 86 dB
Uncertainty of measured value KpC peak 3 dB
Vibration value 1 αhv 3-way αh,D 1,5 m/s²
Uncertainty of measured value Kα 1,5 m/s²
Battery voltage
18 V Battery capacity
4 AhSpeed,full load0-500/0-1 500 rpm
Speed, no load0-580/0-1 760 rpm
Torque
24/8 N m
