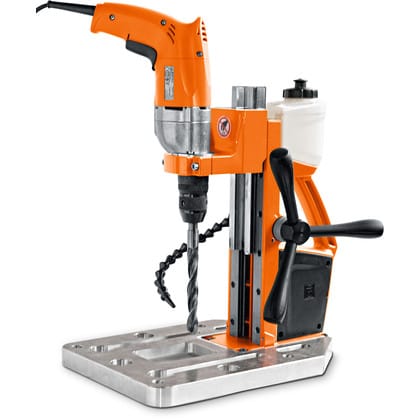

Fein IBS 16 Industrial drill jig 90320223000
Industrial drill jig for drills with drilling capacity of up to 16 mm.
- Lightweight, compact industrial drill jig with aluminium base plate for universal use, including drilling, tapping, reaming and countersinking.
- Double drill motor guide for use with very large drilling tools.
- Base plate with hole pattern for Demmeler and Siegmund System 28 welding tables.
- Integrated coolant tank with flexible jointed hose.
- Feed handwheel can be moved from one side to the other.
- Carriage height adjustable without tools.
- only available in 230 V
- 1 coolant tank
- 1 flex-jointed hose
- 1 reducing ring, diameter 43 mm
- Weight according to EPTA8 kg
- Twist drill max. Ø16 mm
- TappingM 12
- Countersinking max. Ø50 mm
- Reaming max. Ø16 mm
