Gaga bilt GB730BLB-06 Riveting Kit for installing CHERRYMAX® 1/8” – 3/16,

GAGE BILT GB730BLB-0

The GAGE BILT GB730BLB-06 now offers a complete tool kit for installing CHERRYMAX® 1/8” – 3/16″, HUCK® and
CHERRY® blind bolts thru 3/16” per MS21140 & MS21141 (U or S) and MS90353 & MS90354 (U or S)
and 3/16” NAS Tension and NAS Shear lockbolts.

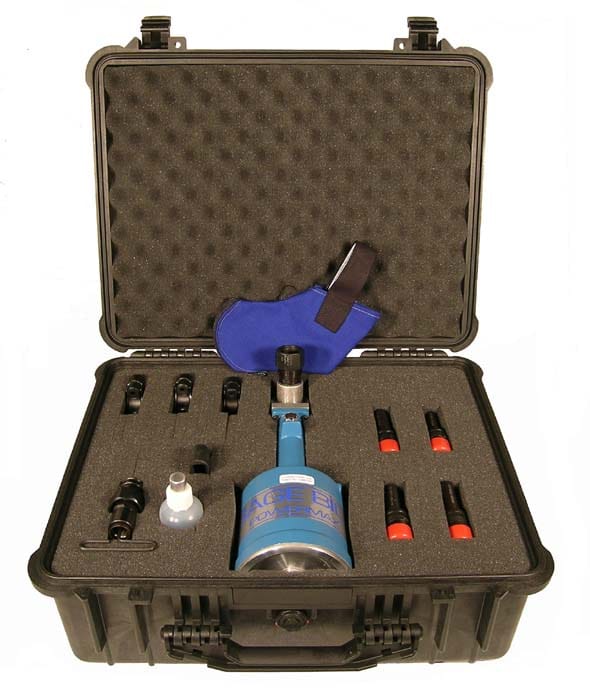

The basic kit, GB730BLB-06 contains: a pintail catcher bag and a grip selector gage.
Nose Assemblies:
– CHERRYMAX- Straight and Right Angle with stroke limiter.
– Blind Bolts- Straight noses to install -5 and -6 diameters.
– Lock Bolt- Straight nose to install -6 diameter.
All these items are stored in an easy access carrying case with manuals and data sheets.

APPLICATIONS

• Lightweight Aerospace lockbolts

• Thru 1/4″

• Aerospace Blind Bolts and Blind Rivets thru 3/16″

SPECS

• Accepts 3/4″ diameter Gage Bilt and Huck® noses

• Hydraulic Return

• LOAD:  4,000 lbs

• STROKE:  .500″

• GB730BLB-06_AD Product Info.pdf

CHERRYMAX, ALLMAX®,HUCKMAX® NAS9301-9312, M7885 BACR15FP/FR & BACR15GF/GK	Dia	Nose Assemblies
		Straight	Right Angle
	1/8″	456MAX-751A-21 (Pulls all 3)	*456MAX-751C-54RA (Pulls all 3)
	5/32″
	3/16″

*Right Angle nose assemblies require 730157 stroke limiter.

BLIND BOLT MS90353S & U / MS90354S & U MS21140S & U / MS21141S & U CR7000 SERIES BACB30YY, YU, & YT	Dia	Nose Assemblies
		Straight
	5/32″	SB05-752C-20
	5/32″
	3/16″	SB06-752C-20
	3/16″

	3/16″	GPL3SC-V06, GPL3SP-V06, GPL3SC-DT06, GPL3SP-DT06, GPL 3SC-EU06, GPL3SP-EU06, GPL8TC-V06, GPL8TP-V06, GPL8TC-DT06, GPL8TP-DT06, GPL8TC-EU06, GPL8TP-EU06	Straight NAS06-731-20
	3/16″	NAS1436, NAS1446, NAS2406, NAS2506, NAS7006, NAS7016, NAS7026, NAS7036
	3/16″	NAS1456, NAS1466, NAS1476, NAS1516, NAS1526, NAS5136, NAS6936, NAS6946, NAS6956, NAS6966
	3/16″	NAS2006, NAS2106, NAS2116, NAS2126
