GAGE BILT GB731BBLB-08
The GAGE BILT GB731BBLB-08 now offers a complete tool kit for installing CHERRYMAX® 1/8” – 3/16”, HUCK® and
CHERRY® blind bolts thru ¼” per MS21140 & MS21141 (U or S) and MS90353 & MS90354 (U or S)
and 3/16” thru ¼” NAS Tension and NAS Shear lockbolts.

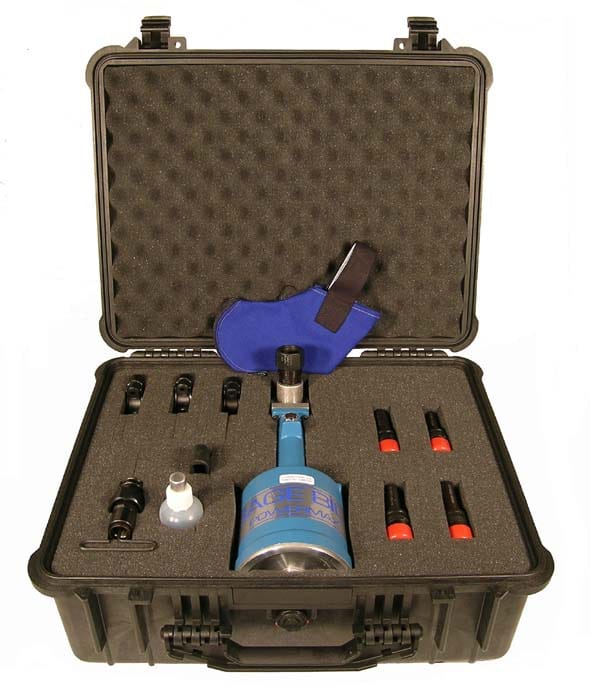

The basic kit, GB731BBLB-08 contains: a pintail catcher bag and a grip selection gage.
Nose Assemblies:
– CHERRYMAX- Straight and Right Angle with stroke limiter.
– Blind Bolts- Straight noses to install -6 and -8 diameters.
– Lock Bolt- Straight noses to install -6 and -8 diameters.
All these items are stored in an easy access carrying case with manuals and data sheets.
APPLICATIONS
Aerospace and Commercial
Lockbolts thru 1/4″
Aerospace and Commercial Blind Rivets thru 1/4
SPECS
- Accepts diameter 3/4″ Gage Bilt & Huck® noses
- Hydraulic Return
- LOAD: 4,800 lbs
- STROKE: .600″
CHERRYMAX, ALLMAX®,HUCKMAX® NAS9301-9312, M7885 BACR15FP/FR & BACR15GF/GK | Dia | Nose Assemblies | |
| Straight | Right Angle | ||
 | 1/8″ | 456MAX-751A-21 (Pulls all 3) | *456MAX-751C-54RA (Pulls all 3) |
 | 5/32″ | ||
 | 3/16″ | ||
*Right Angle nose assemblies require 730157 stroke limiter.
| BLIND BOLT | Dia | Nose Assemblies |
| Straight | ||
 | 5/32″ | SB06-752C-20 |
 | 5/32″ | |
 | 3/16″ | SB08-713-20 (Not for Alloy Steel) |
 | 3/16″ |
 | 3/16″ | GPL3SC-V06, GPL3SP-V06, GPL3SC-DT06, | Straight NAS06-731-20 |
 | 3/16″ | NAS1436, NAS1446, NAS2406, NAS2506, | |
 | 3/16″ | NAS1456, NAS1466, NAS1476, NAS1516, | |
 | 3/16″ | NAS2006, NAS2106, | |
 | 1/4″ | GPL3SC-V08, GPL3SP-V08, GPL 3SC-EU08, GPL3SP-EU08, | Straight NAS08-731-20 |
 | 1/4″ | NAS1438, NAS1448, NAS2408, NAS2508, | |
 | 1/4″ | NAS1458, NAS1468, NAS1478, NAS1518, | |
 | 1/4″ | NAS2008, NAS2108, NAS2118, NAS2128 |
