Gesipa Firefox 2 F Axial eco – M 8 Blind rivet nut tool 1451042
CALL FOR PRICING
Categories: Gesipa Firefox Axial Eco Rivet Nut Gun
Gesipa Firefox 2 F Axial eco – M 8 Blind rivet nut tool 1451042
FireFox® 2 F Axial eco – M 8 1451042
- The FireFox 2 F Axial eco (M8) pneumatic-hydraulic blind rivet nut setting tool is designed for vertical use.
- The FireFox 2 F Axial eco (M8) is ideally suited for integration in production systems and facilitates flexible and ergonomically efficient manual working procedures in applications with restricted access that therefore require riveting from above.
- The compressed-air-driven riveting gun is very useful for installing blind rivet nuts in areas that required vertical riveting.

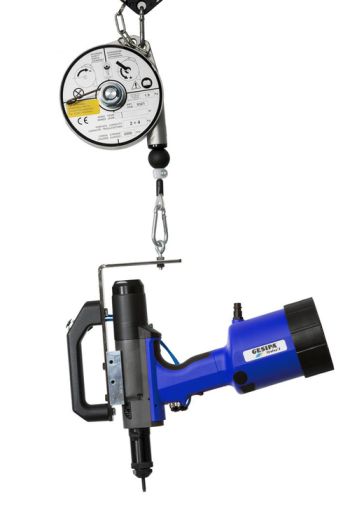

- With its specific design, the FireFox 2 F Axial eco (M8) can also be fitted to a balancer.
Technical specifications
FireFox® 2 F Axial eco – M 8 1451042
| Weight | 3,30 kg |
| Working range | Sets blind rivet nuts from M3 to M12 in all materials except M12 stainless steel |
| Working range alu | M12 |
| Working range steel | M12 |
| Air consumption (min) | 2 Liter |
| Air consumption (max) | 4 Liter |
| Air hose connection | 6 mm |
| Setting stroke | 22000 N |
| Stroke | 10 mm |
| Operating mode | Compressed air |
| Product type | FireFox® |
| Operating pressure (min) | 5 bar |
| Operating pressure (max) | 7 bar |
Scope of deliveryScope of delivery
- 2 double open ended wrenches SW 24/271
- hexagon screwdriver SW 4
- 1 oil refill can with hydraulic oil 100 ml
- 1 oil refill can
- Operating instructions with spare parts listQuick setting guide
Equipment and accessories
FireFox® 2 F Axial eco – M 8 1451042
| Name | Article number |
|---|---|
| Rubber foot 2 | 1436371 |
| Screw nosepiece M 4 | 1435100 |
| Screw nosepiece M 5 | 1435102 |
| Screw nosepiece M 6 | 1435103 |
| Screw nosepiece M 8 | 1435105 |
| Screw insert FireFox® M4 | 1436278 |
| Screw insert FireFox® M5 | 1436280 |
| Screw insert FireFox® M6 | 1436281 |
| Swivel air connector | 1435479 |
| FireFox® accessories metric dimensions | 1458111 |
| FireFox® accessories UNC/UNF dimensions | 1458112 |
| Tool mount for FireFox® 1 F and 2 | 1458175 |
| Conversion kit for rivet nut studs M 4 | 1436285 |
| Conversion kit for rivet nut studs M 5 | 1436286 |
| Screw insert FireFox® M8 | 1436282 |
| Conversion kit for rivet nut studs M 6 | 1436287 |
| Conversion kit for rivet nut studs M 8 | 1436288 |
| Conversion kit for blind rivet nuts M4 | 1436264 |
| Conversion kit for blind rivet nuts M5 | 1436279 |
| Conversion kit for blind rivet nuts M6 | 1436283 |
| Conversion kit for blind rivet nuts M8 | 1436284 |
| Conversion kit for extended DIN screws (SL30) M4 x min. 50 | 1458182 |
| Conversion kit for extended DIN screws (SL30) M5 x min. 50 | 1458183 |
| Conversion kit for extended DIN screws (SL30) M6 x min. 60 | 1458184 |
| Conversion kit for extended DIN screws (SL30) M8 x min. 60 (not FireFox 1 F) | 1458178 |
| Conversion kit for setting nut FireFox® M6 | 1436354 |
| Conversion kit for setting nut FireFox® M8 | 1436355 |
| Conversion kit for setting nut FireFox® M10 | 1436356 |
| Conversion kit for setting nut FireFox® M12 | 1436357 |
| Threaded mandrel M 6 | 1436214 |
| Threaded mandrel M 8 | 1436215 |
| Threaded mandrel M 10 | 1436216 |
| Threaded mandrel M 12 | 1436217 |
