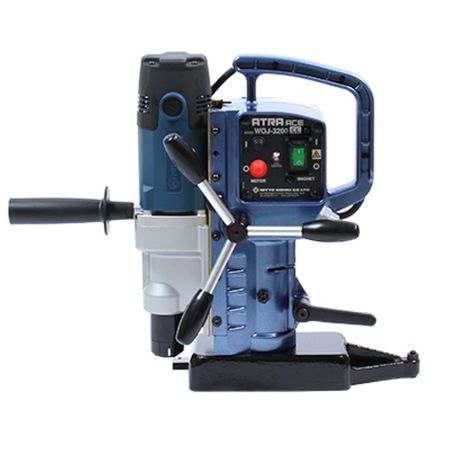

NITTO KOHKI WOJ-3200 ATRA ACE Manual Feed Magnetic Base Drill 940 W 870 rpm 220 V AC 50Hz Hole Dia 17.5 to 32 mm
Specifications
| Power Source (Single Phase): | 220 V AC 50Hz |
| Rated Power Consumption: | 950 W |
| Magnet Power Consumption: | 70 W |
| Hole Diameter: | 17.5 to 32 mm |
| Plate Thickness: | 9 to 50 mm |
| No Load Speed: | 870 min-1 |
| Magnet Holding Power: | 9.000 N |
| Magnet Dimensions: | 99 x 177 mm |
| Mass (Weight): | 13 kg |
| Standard Accessories: | Pilot Pin 08035: 1 pc. 3 mm Hex. Socket Screw Key: 1pc. 6 mm Hex. Socket Screw Key: 1 pc. 8 x 10 mm Spanner: 1 pc. Safety Strap: 1 pc. Sub Handle: 1 pc. Guard Ass’y: 1 set |
