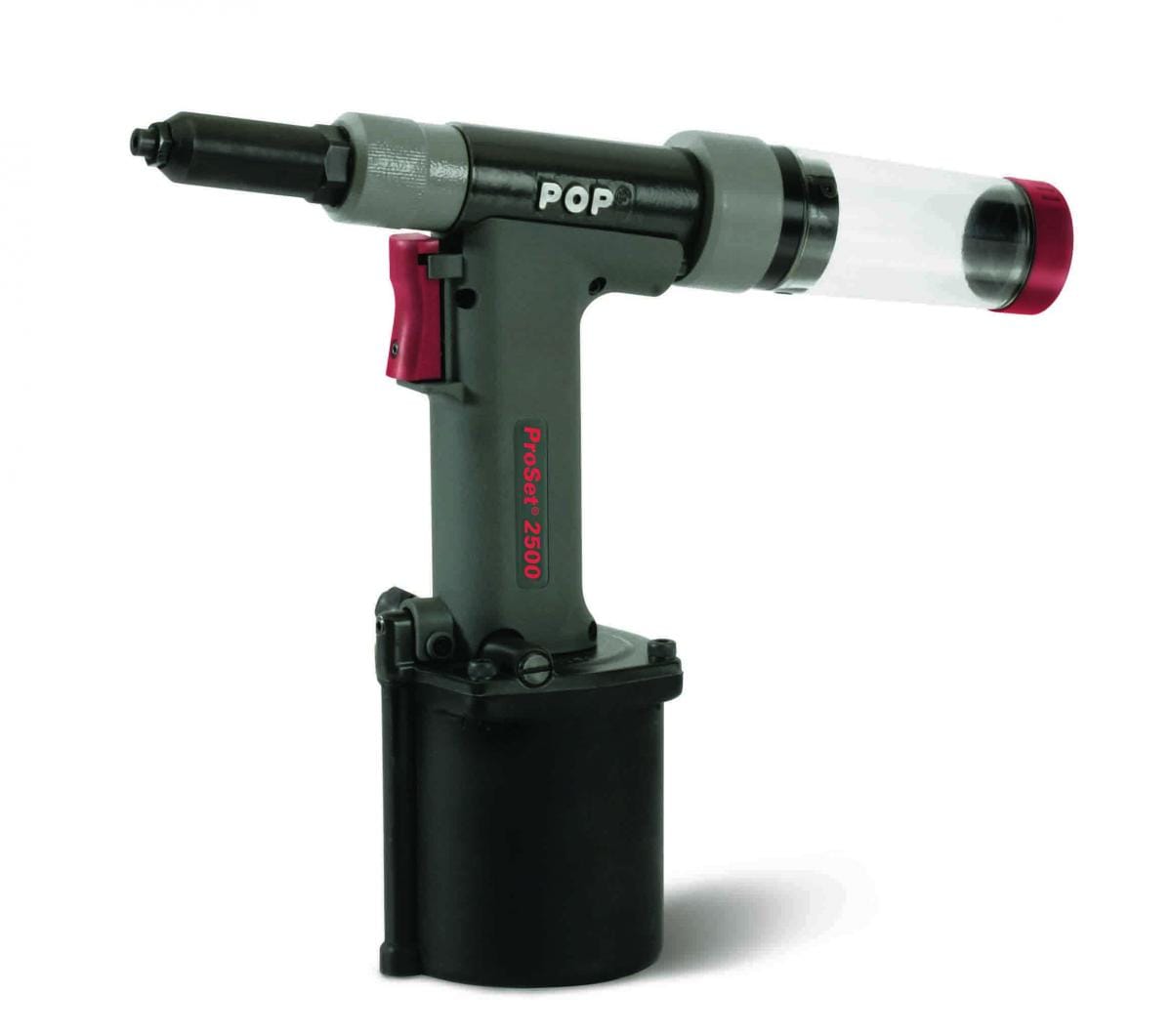

Pop Proset 2500 Rivet Gun

Pop ProSet 2500 Rivet Gun

Get the power, lose the weight.

The Pop ProSet® 2500 tool sets new standards for pneumatic rivet tools. Designed specifically to set a wide range of blind rivets, including 3/16″ (4.8mm) High Strength and Stainless Steel. It delivers 2,110 lbs. (9.4 kN) of pulling force with a “highest in class” force-to-weight ratio of 730 lbf/lb (7.18 kN/kg).

The Pop ProSet® 2500 tool features many innovative high performance features including a patented “Quick Disconnect” nose housing and jaw case for rapid cleaning and maintenance of the front end without the need for any tools. With the 2500 “Quick Disconnect” Mandrel Collection System (MCS), mandrels are safely collected for easy disposal and cleaner work areas. An air-isolation switch on the MCS prevents air flow when the MCS is disconnected. The tough aluminum casing is designed to prevent damage and enhance the life of the tool. A left or right 90° swivel air fitting ensures the tool can be adapted to virtually any workstation configuration, while the “on/off” switch minimizes air consumption. The spring return ensures fast, reliable setting cycles reducing operating cost.

An extended 5″ (140mm) front end is also available for extra reach in special setting situations. The ProSet® 2500 is compatible with other Emhart Teknologies’ automation systems including the remote Mandrel Collection System (MCS5000), the POP® Rivet Presenter (RP) and the SmartSet®.

The ProSet® 2500 series will set 2mm Micro Rivets, 3/32″ (2.4mm), 1/8″ (3.2mm), 5/32″ (4.0mm) and 3/16″ (4.8mm) diameter rivets in all materials including high strength structural stainless steel rivets.

Features & Benefits:

Ergonomic

• Lightweight polymer construction
• Comfortable two finger, low activation force trigger
• Directional air exhaust (MCS model)

Performance

• High force-to-weight ratio
• Quick disconnect nose housing
• Quick disconnect jaw case
• Quick disconnect Mandrel Collection System

Economy

• On/Off, left or right swivel air fitting
• Spring return for a reliable fast setting cycle

Adaptability

• Extended 5″ (140mm) long front end for extra reach
• POP® Rivet Presenter (RP) compatible

Safety

• Air-isolation switch during MCS removal

The ProSet 2500 series will set 2mm Micro Rivets and 3/32″ (2.4mm), 1/8″ (3.2mm), 5/32″ (4.0mm), and 3/16″ (4.8mm) diameter rivets in all materials including high-strength structural stainless steel rivets.
